Same model may have multiple batches, images only for reference.

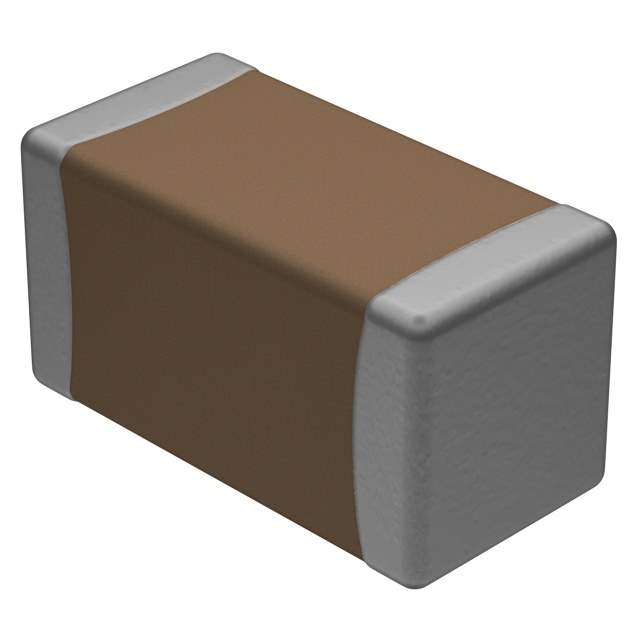

VJ1206Y223JXGAT5Z Real Image
Same model may have multiple batches, images only for reference.

VJ1206Y223JXGAT5Z

Part No VJ1206Y223JXGAT5Z
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 0.022UF 1KV X7R 1206
Datasheet
VJ1206Y223JXGAT5Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Features 0.022 µF ±5% 1000V (1kV) Ceramic Capacitor X7R 1206 (3216 Metric)
Manufacturer Vishay
Series VJ HVArc Guard™
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount, MLCC
Package 1206 (3216 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number VJ1206Y223JXGAT5Z-ND, VJ1206Y223JXGAT5ZL
Quantity per package 2500
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902580-VJ1206Y223JXGAT5Z
Ultra Librarian 3D Model Ultra Librarian VJ1206Y223JXGAT5Z CAD Model

Description

The VJ1206Y223JXGAT5Z is a ceramic capacitor from Vishay that has a capacitance of 0.022 µF and a voltage rating of 1000 V.

  • Capacitance: 0.022 µF
  • Voltage Rating: 1000 V
  • Tolerance: ±5%
  • Mounting Type: Surface Mount
  • Series: VJ HVArc Guard™
  • Family: MLCC
  • Package: 1206 (3216 Metric)
  • Packaging: Reel - TR
  • Quantity per Package: 2500
  • Operating Temperature Range: -55°C to 125°C
  • RoHS Compliant: Yes
