Same model may have multiple batches, images only for reference.

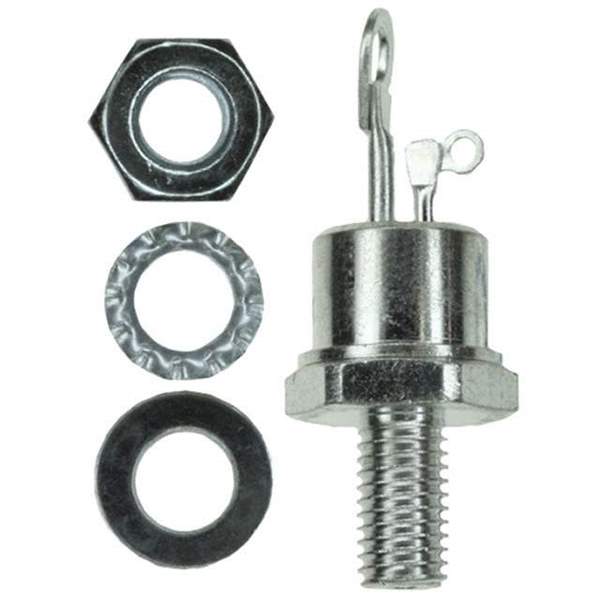

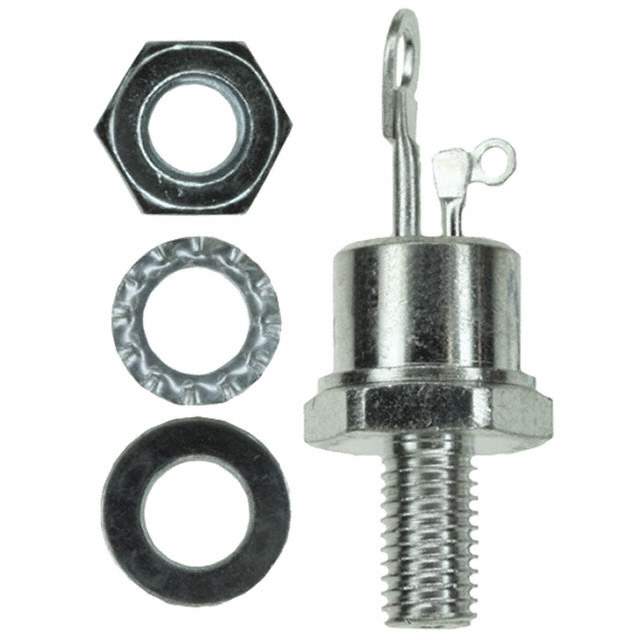

VS-2N5206 Real Image
Same model may have multiple batches, images only for reference.

VS-2N5206

Part No VS-2N5206
Manufacturer Vishay
Catalog SCRs - Single
Description SCR PHASE CONT 1000V 35A TO4
Datasheet
VS-2N5206 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 1000V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 40mA
Voltage - On State (Vtm) (Maximum) 2.3V
Current - On State (It (AV)) (Maximum) 22A
Current - On State (It (RMS)) (Maximum) 35A
Current - Hold (Ih) (Maximum) 200mA
Current - Off State (Maximum) 2mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 285A, 300A
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AA, TO-48-3, Stud
Manufacturer Package TO-208AA (TO-48)
Win Source Part Number 762252-VS-2N5206
Popularity Medium
Supply and Demand Status Limited
Family Name VS-2N5206
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-2N5206 CAD Model

Description

The Vishay VS-2N5206 is a standard recovery SCR with a voltage rating of 1000V.

  • Current Rating: 35A
  • Package: TO-208AA
  • Mounting: Chassis or stud
  • Gate Trigger Voltage: 2V
  • Gate Trigger Current: 40mA
  • Maximum On-State Voltage: 2.3V
  • Maximum Off-State Current: 2mA
  • Demand: Medium
  • Estimated EOL Date: 2026
  • Supply Status: Limited
  • Demand Status: Limited
