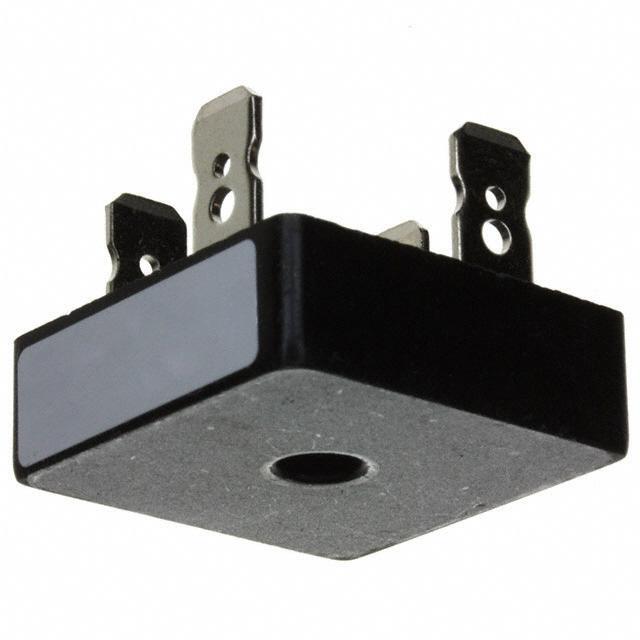

VS-36MB80A Vishay
Same model may have multiple batches, images only for reference.

VS-36MB80A

Part No VS-36MB80A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECTIFIER BRIDGE 800V 35A D-34A
Datasheet
VS-36MB80A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 800V
Current - Average Rectified (Io) 35A
Current - Reverse Leakage @ Vr 10μA @ 800V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, D-34
Manufacturer Package D-34
Win Source Part Number 763410-VS-36MB80A
Popularity Medium
Supply and Demand Status Limited
Family Name VS-36MB80A
ECCN EAR99
Country of Origin India
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian VS-36MB80A CAD Model

Description

This component is manufactured by Vishay and is a single phase diode.

  • Current Rating: 35A
  • Voltage Rating: 800V
  • Operating Temperature Range: -55°C to 150°C
