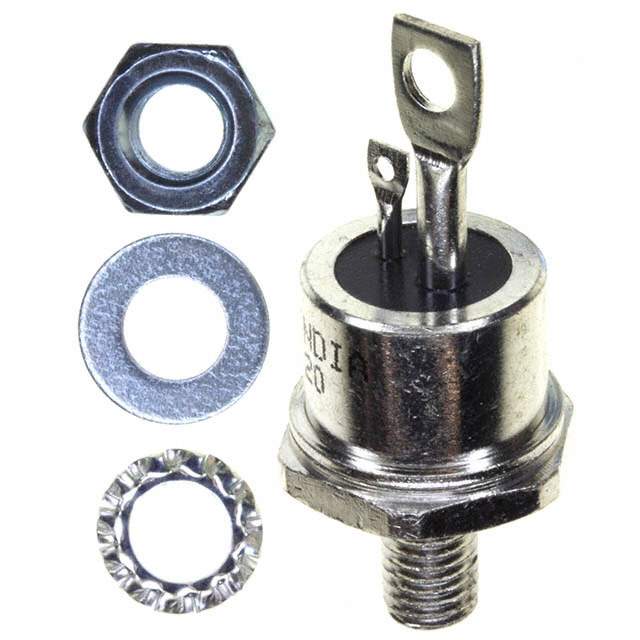

VS-50RIA120 Real Image
Same model may have multiple batches, images only for reference.

VS-50RIA120

Part No VS-50RIA120
Manufacturer Vishay
Catalog SCRs - Single
Description SCR 1.2KV 80A TO208AC  /  SCR 1.2 kV 80 A Standard Recovery Chassis, Stud Mount TO-208AC (TO-65)
Datasheet
VS-50RIA120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Thyristors - SCRs
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Voltage - Off State 1.2 kV
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 100 mA
Voltage - On State (Vtm) (Max) 1.6 V
Current - On State (It (AV)) (Max) 50 A
Current - On State (It (RMS)) (Max) 80 A
Current - Hold (Ih) (Max) 200 mA
Current - Off State (Max) 15 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1430A, 1490A
SCR Type Standard Recovery
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Chassis, Stud Mount
Package / Case TO-208AC, TO-65-3, Stud
Supplier Device Package TO-208AC (TO-65)
Base Product Number 50RIA120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
Other Names VS-50RIA120-ND,VS50RIA120-ND,VS50RIA120,*50RIA120,50RIA120
Standard Package 100
Win Source Part Number 1104198-VS-50RIA120
Ultra Librarian 3D Model Ultra Librarian VS-50RIA120 CAD Model

Description

The 1104198-VS-50RIA120 is a thyristor SCR designed for use in various applications such as AC motor control, industrial heating, and static switching.

  • Voltage Off State: 1.2 kV
  • Voltage Gate Trigger: 2.5 V
  • Maximum Current On State: 50 A
  • Maximum Current Hold: 200 mA
  • Current On State (It (RMS)): 80 A
  • Current Off State: 15 mA
  • Mounting: chassis and stud mount
  • Package/Case: TO-208AC, TO-65-3, Stud
  • SCR Type: standard recovery
  • Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Manufacturer: Vishay General Semiconductor - Diodes Division
