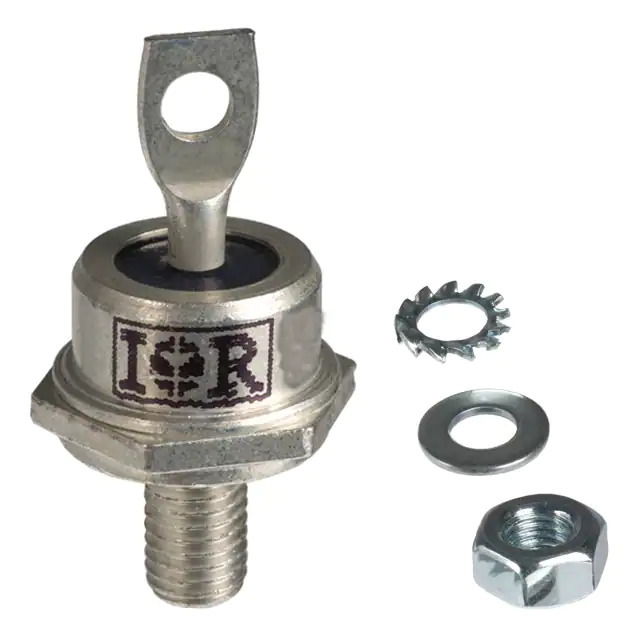

VS-70HF120 Vishay
Same model may have multiple batches, images only for reference.

VS-70HF120

Part No VS-70HF120
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 70A DO203AB
Datasheet
VS-70HF120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay General Semiconductor - Diodes Division
Series -
Package Bulk
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 70A
Voltage - Forward (Vf) (Max) @ If 1.35 V @ 220 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 9 mA @ 1200 V
Capacitance @ Vr, F -
Mounting Type Chassis, Stud Mount
Package / Case DO-203AB, DO-5, Stud
Supplier Device Package DO-203AB (DO-5)
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number 70HF120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368258-VS-70HF120
Ultra Librarian 3D Model Ultra Librarian VS-70HF120 CAD Model

Description

The VS-70HF120 is a rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Series: 70HF120
  • Package: DO-203AB (DO-5)
  • Maximum Reverse Voltage: 1200V
  • Average Rectified Current: 70A
  • Forward Voltage: 1.35V @ 220A
  • Recovery Time: Over 500ns (Standard)
  • Reverse Leakage Current: 9mA @ 1200V
  • Temperature Range: -65°C to 150°C
  • Mounting Type: Chassis and Stud
  • Common Use: Diode Rectifier Circuits
