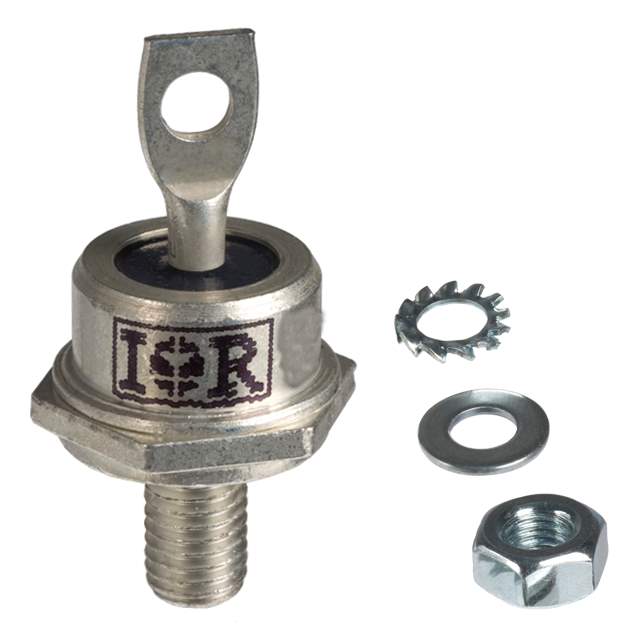

VS-70HF80 Real Image
Same model may have multiple batches, images only for reference.

VS-70HF80

Part No VS-70HF80
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 800V 70A DO203AB
Datasheet
VS-70HF80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 800V
Current - Average Rectified (Io) 70A
Voltage - Forward (Vf) (Maximum) @ If 1.35V @ 220A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 9mA @ 800V
Mounting Chassis, Stud Mount
Package DO-203AB, DO-5, Stud
Manufacturer Package DO-203AB
Operating Temperature - Junction -65°C ~ 150°C
Win Source Part Number 764654-VS-70HF80
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-70HF80 CAD Model

Description

The VS-70HF80 is a standard diode designed and manufactured by Vishay Semiconductor Diodes Division.

  • Package: DO-203AB, DO-5, Stud
  • Current Average Rectified: 70A
  • Reverse Leakage Current: 9mA @ 800V
  • Forward Voltage: 1.35V @ 220A
  • Series: VS-70HF80
  • Category: Discrete Semiconductor Products
