The VS-FC420SA10 is an N-Channel MOSFET transistor from the FC420 series by Vishay General Semiconductor - Diodes Division.

• Vdss: 100 V
• Power Dissipation (Max): 652W (Tc)
• Vgs (Max Rds On, Min Rds On): 10V
• Configuration: 2 N-Channel (Dual)
• Id @ 25°C: 435A (Tc)
• Rds On (Max) @ Id, Vgs: 2.15mOhm @ 200A, 10V
• Vgs(th) (Max) @ Id: 3.8V @ 750µA
• Qg (Max) @ Vgs: 375 nC @ 10 V
• Ciss (Max) @ Vds: 17300 pF @ 25 V
• Technology: MOSFET (Metal Oxide)
• Package: Tube
• Standard Package: 10
• Mounting Type: Chassis Mount

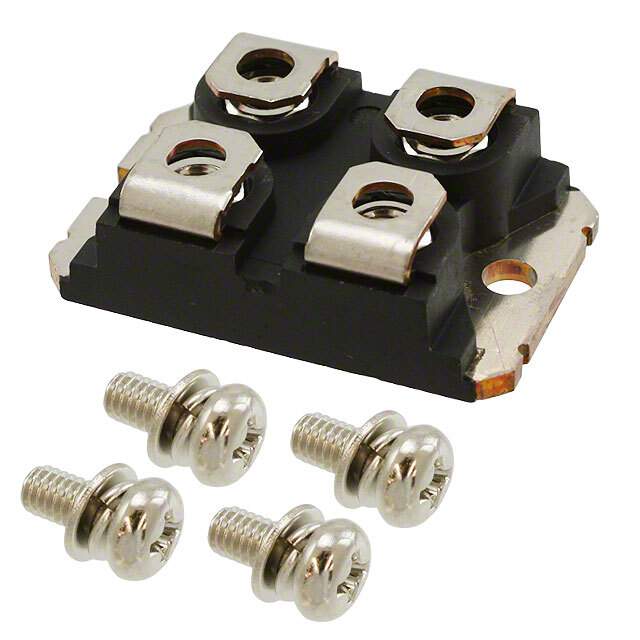

• Package / Case: SOT-227-4, miniBLOC
• REACH Status: Unaffected
• HTSUS: 8541.29.0095
