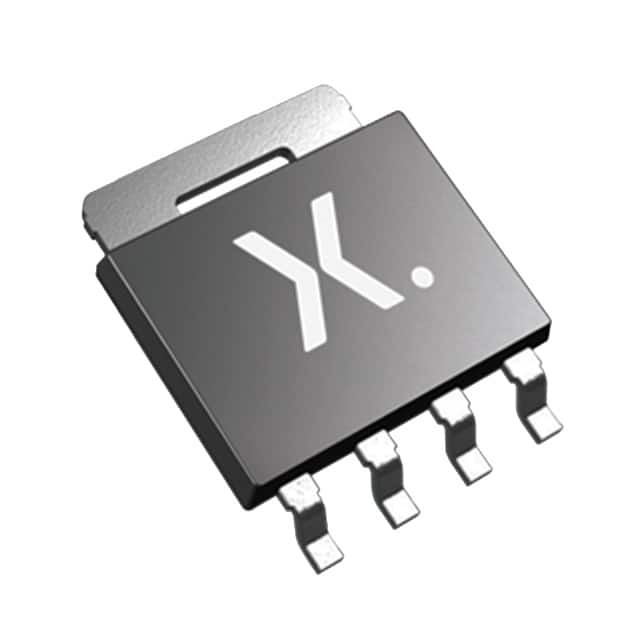

The Nexperia BUK7Y28-75B,115 is an N-channel MOSFET transistor that is part of the Automotive, AEC-Q101, TrenchMOS™ series.

• Applications: designed for use in a variety of applications, including discrete semiconductor products and transistors - FETs, MOSFETs - Single.
• Voltage: maximum drain to source voltage of 75 V
• Current: continuous drain current of 35.5A @ 25°C.
• Rds On (Max): 28mOhm @ 15A, 10V
• Vgs(th) (Max): 4V @ 1mA.
• Package/Case: SC-100, SOT-669
• Supplier Device Package: LFPAK56, Power-SO8.
• Gate Charge (Qg) (Max): 21.2 nC @ 10 V
• Input Capacitance (Ciss) (Max): 1417 pF @ 25 V.
• Temperature Range: between -55°C to 175°C (TJ).
• ECCN: EAR99.
• MSL Level: 1 (Unlimited)
• REACH status: unaffected.
• HTSUS: 8541.29.0095
• Manufactured by: Nexperia USA Inc.
• Other names: BUK7Y2875B115, 568-5519-1, 568-5519-2, 568-5519-6, 568-5519-6-ND, 568-5519-1-ND, 568-5519-2-ND, 1727-4609-6, 1727-4609-2, 1727-4609-1, and 934063303115.
• Base product number: BUK7Y28
• Drive voltage (Max Rds On, Min Rds On): 10V.
