VS-GT55LA120UX Vishay General Semiconductor - Diodes Division

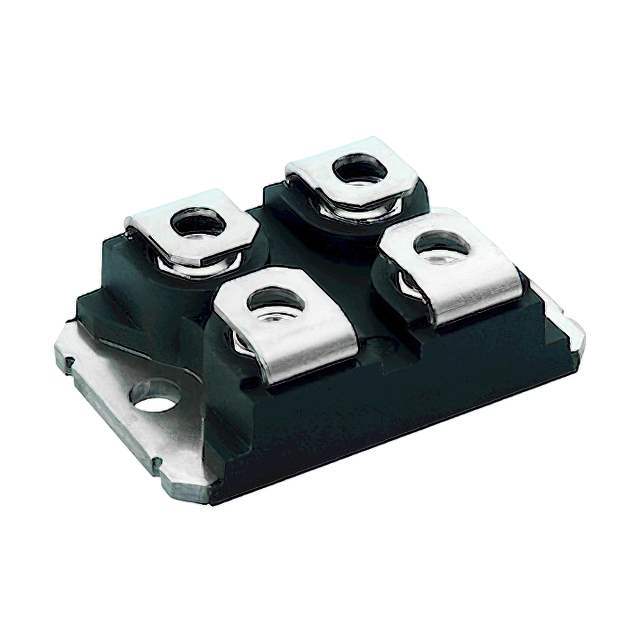

Same model may have multiple batches, images only for reference.

VS-GT55LA120UX

Part No VS-GT55LA120UX
Manufacturer Vishay
Catalog IGBTs - Modules
Description SOT-227 - LOW SIDE CHOPPER IGBT
Datasheet
VS-GT55LA120UX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202848-VS-GT55LA120UX
Manufacturer Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products- Transistors IGBTs -IGBT Modules
Package Tube
Product Status Active
IGBT Type Trench Field Stop
Configuration Single Chopper
Voltage - Collector Emitter Breakdown (Max) 1200 V
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Ultra Librarian 3D Model Ultra Librarian VS-GT55LA120UX CAD Model

Description

The 1202848 is a high-performance IGBT module designed by Vishay General Semiconductor - Diodes Division.

  • Manufacturer: Vishay General Semiconductor - Diodes Division
  • Maximum Collector-Emitter Breakdown Voltage: 1200V
  • Configuration: Single Chopper
  • Technology: Trench Field Stop
  • Package: SOT-227-4, miniBLOC
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 150°C
  • Product Status: Active
