VS-GT90SA120U Vishay General Semiconductor - Diodes Division

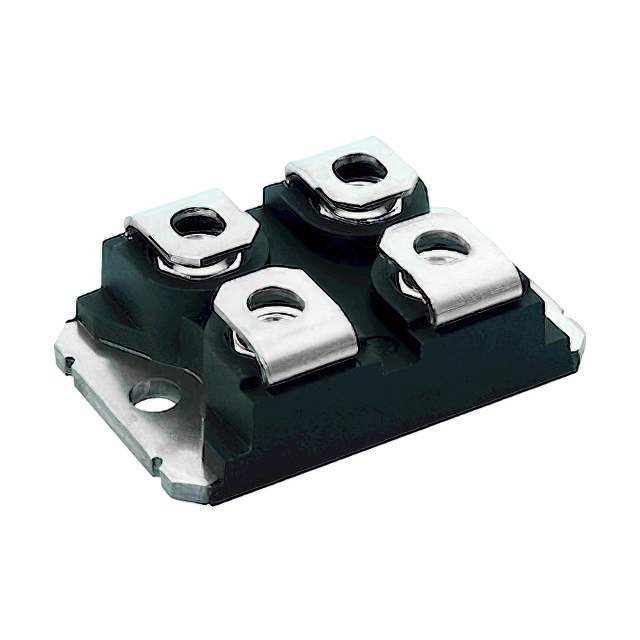

Same model may have multiple batches, images only for reference.

VS-GT90SA120U

Part No VS-GT90SA120U
Manufacturer Vishay
Catalog IGBTs - Modules
Description SOT-227 - SINGLE SWITCH IGBT
Datasheet
VS-GT90SA120U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202381-VS-GT90SA120U
Manufacturer Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products -Transistors -IGBTs IGBT Modules
Package Tube
Product Status Active
IGBT Type Trench Field Stop
Configuration Single
NTC Thermistor No
Operating Temperature -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Ultra Librarian 3D Model Ultra Librarian VS-GT90SA120U CAD Model

Description

The Vishay General Semiconductor - Diodes Division presents the 1202381 IGBT Module, a single configuration transistor designed for high power applications.

  • IGBT Type: Trench Field Stop
  • Operating Temperature: -40°C to 150°C
  • Package/Case: SOT-227-4, miniBLOC
  • Mounting Type: Chassis Mount
  • NTC Thermistor: No
  • Product Status: Active
