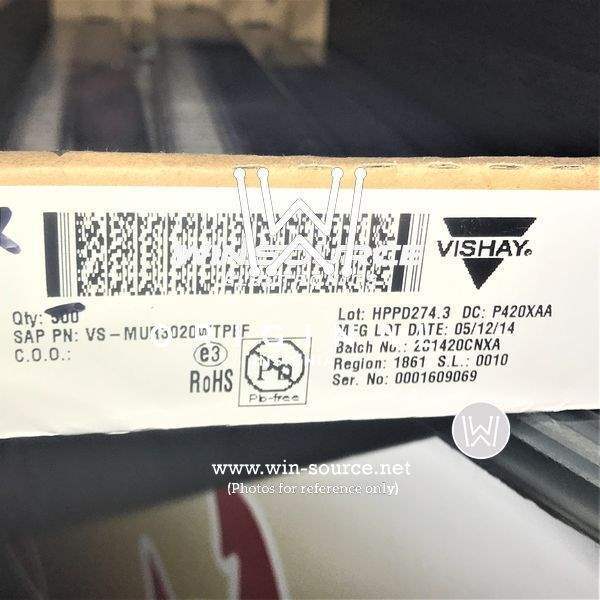

VS-MUR3020WTPBF Real Image VS-MUR3020WTPBF real image VS-MUR3020WTPBF label picture
Same model may have multiple batches, images only for reference.
VS-MUR3020WTPBF Real Image VS-MUR3020WTPBF real image VS-MUR3020WTPBF label picture
VS-MUR3020WTPBF Real Image VS-MUR3020WTPBF real image VS-MUR3020WTPBF label picture
Same model may have multiple batches, images only for reference.

VS-MUR3020WTPBF

Part No VS-MUR3020WTPBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 15A TO247AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 1.05V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 35ns
Current - Reverse Leakage @ Vr 10μA @ 200V
Operating Temperature - Junction -65°C to 175°C
Mounting Through Hole
Case / Package TO-247AC
Win Source Part Number 136673-VS-MUR3020WTPBF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name VS-MUR3020WT
Introduction Date April 11, 2011
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian VS-MUR3020WTPBF CAD Model

Description

The VS-MUR3020WTPBF is a fast recovery diode manufactured by Vishay.

  • Designed for: high-frequency rectification
  • Ideal for: power supplies, inverters, and motor control
  • Maximum Reverse Voltage: 200V
  • Maximum Forward Voltage: 1.05V @ 15A
  • Reverse Recovery Time: 35ns
  • Current Rating: 15A
  • Package: TO-247AC
  • RoHS compliant: Yes
  • Supply: limited
  • Demand: high
