Same model may have multiple batches, images only for reference.

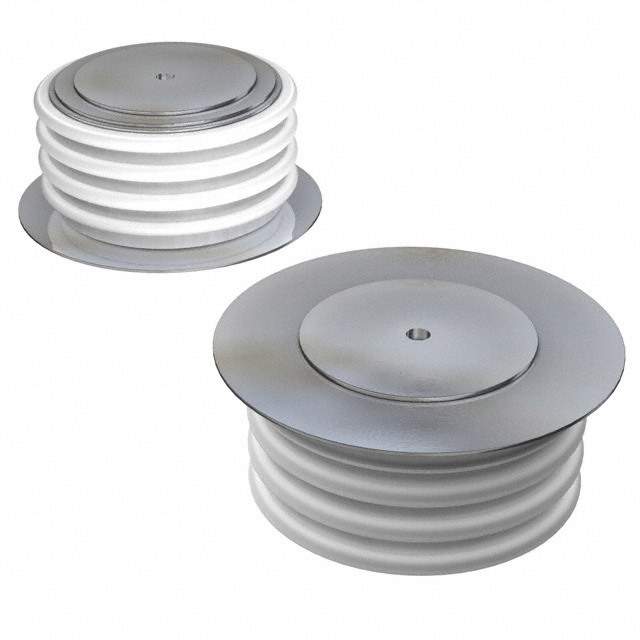

VS-SD553C45S50L Real Image
Same model may have multiple batches, images only for reference.

VS-SD553C45S50L

Part No VS-SD553C45S50L
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GP 4.5KV 560A DO200AB  /  Diode Standard 4500 V 560A Clamp On DO-200AB, B-PUK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 4500 V
Current - Average Rectified (Io) 560A
Voltage - Forward (Vf) (Max) @ If 3.24 V @ 1500 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 5 µs
Current - Reverse Leakage @ Vr 75 mA @ 4500 V
Mounting Type Clamp On
Package / Case DO-200AB, B-PUK
Supplier Device Package DO-200AB, B-PUK
Base Product Number SD553
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names *SD553C45S50L,SD553C45S50L,VS-SD553C45S50L-ND,VSSD553C45S50L,VSSD553C45S50L-ND
Standard Package 3
Win Source Part Number 1211673-VS-SD553C45S50L
Ultra Librarian 3D Model Ultra Librarian VS-SD553C45S50L CAD Model

Description

This electronic component is a standard diode rectifier manufactured by Vishay General Semiconductor - Diodes Division.

  • Win Source Part Number: 1211673-VS-SD553C45S50L
  • Voltage DC Reverse: 4500V
  • Current Average Rectified: 560A
  • Voltage Forward: 3.24V @ 1500A
  • Reverse Recovery Time: 5µs
  • Current Reverse Leakage: 75mA @ 4500V
