Same model may have multiple batches, images only for reference.

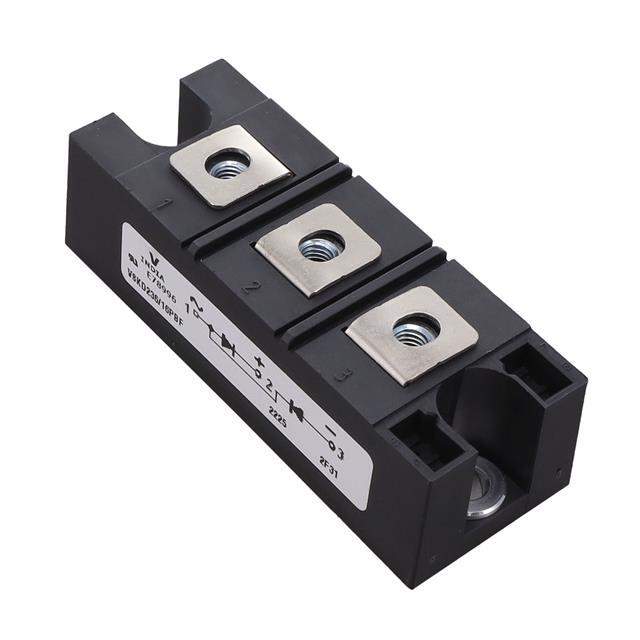

VS-VSKD236/04PBF Real Image
Same model may have multiple batches, images only for reference.

VS-VSKD236/04PBF

Part No VS-VSKD236/04PBF
Manufacturer Vishay
Catalog Diodes, Rectifiers - Arrays
Description DIODE GEN PURP 400V 115A INTAPAK  /  Diode Array 1 Pair Common Cathode Standard 400 V 115A Chassis Mount 3-MAGN-A-PAK™
Datasheet
VS-VSKD236/04PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400 V
Current - Average Rectified (Io) (per Diode) 115A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 20 mA @ 400 V
Operating Temperature - Junction -40°C ~ 150°C
Mounting Type Chassis Mount
Package / Case 3-MAGN-A-PAK™
Supplier Device Package MAGN-A-PAK®
Base Product Number VSKD236
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names VSVSKD23604PBF
Standard Package 15
Win Source Part Number 1067195-VS-VSKD236/04PBF
Ultra Librarian 3D Model Ultra Librarian VS-VSKD236/04PBF CAD Model

Description

The VSKD236/04PBF is a pair of common cathode standard diodes with a maximum reverse voltage of 400V and a reverse leakage current of 20mA @ 400V.

  • Maximum Reverse Voltage: 400V
  • Reverse Leakage Current: 20mA @ 400V
  • Current Average Rectified: 115A
  • Recovery Speed: Standard >500ns (Io)
  • Operating Temperature: -40°C to 150°C
  • Mounting Type: Chassis Mount
  • Package/Case: 3-MAGN-A-PAK™
