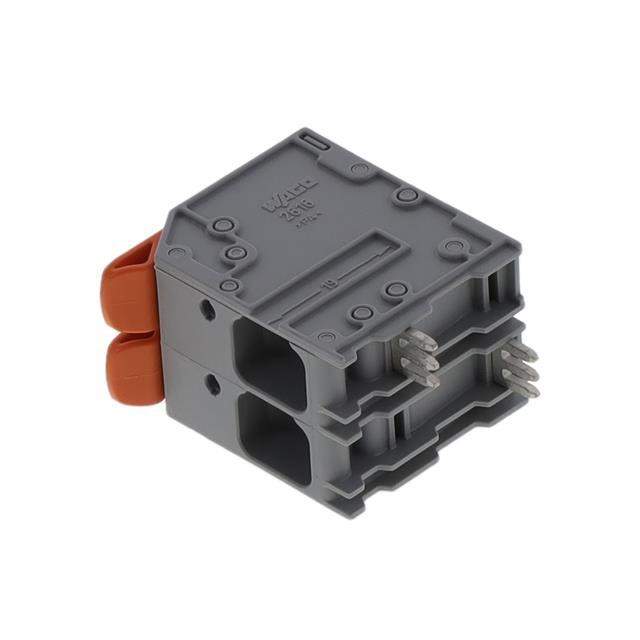

2616-1102/020-000 Real Image
Same model may have multiple batches, images only for reference.

2616-1102/020-000

Part No 2616-1102/020-000
Manufacturer WAGO Corporation
Catalog Terminal Blocks
Description PCB TERMINAL BLOCK; LEVER; 16 MM / 2 Position Wire to Board Terminal Block Horizontal with Board 0.394" (10.00mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr WAGO Corporation
Package Box
Number of Levels 1
Positions Per Level 2
Pitch 0.394" (10.00mm)
Mating Orientation Horizontal with Board
Current 66 A
Voltage 600 V
Wire Gauge 4-18 AWG
Mounting Type Through Hole
Wire Termination Screwless - Leg Spring, Push-In Spring
Features Lever Actuated
Color Gray
Temperature Range - Operating -60°C ~ 105°C
Housing Material Polyamide (PA66) , Nylon 6/6
Contact Material - Plating Electrolytic Copper - Tin Plated
Clamp Material - Plating Steel - Nickel Plated
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1341427-2616-1102/020-000
Ultra Librarian 3D Model Ultra Librarian 2616-1102/020-000 CAD Model

Description

This is a lever actuated terminal block connector designed for wire to board interconnects. TE Connectivity

  • Positions per Level: 2
  • Number of Levels: 1
  • Pitch: 0.394 inches (10.00mm)
  • Color: Gray
  • Wire Gauge: 4-18 AWG
  • Housing Material: Polyamide (PA66) and nylon 6/6
  • Contact Material: Electrolytic copper with tin plating
  • Clamp Material: Steel with nickel plating
  • Wire Termination: Screwless with leg spring and push-in spring
  • Voltage Rating: 600V
  • Current Rating: 66A
  • Mounting Type: Through Hole
  • Operating Temperature: -60°C to 105°C
