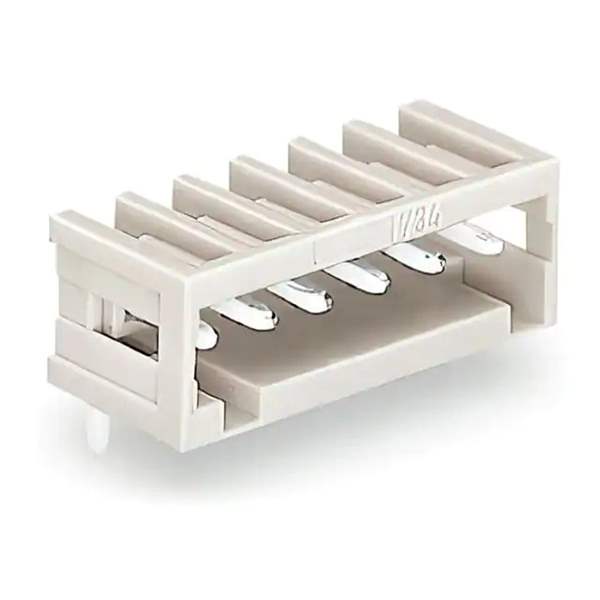

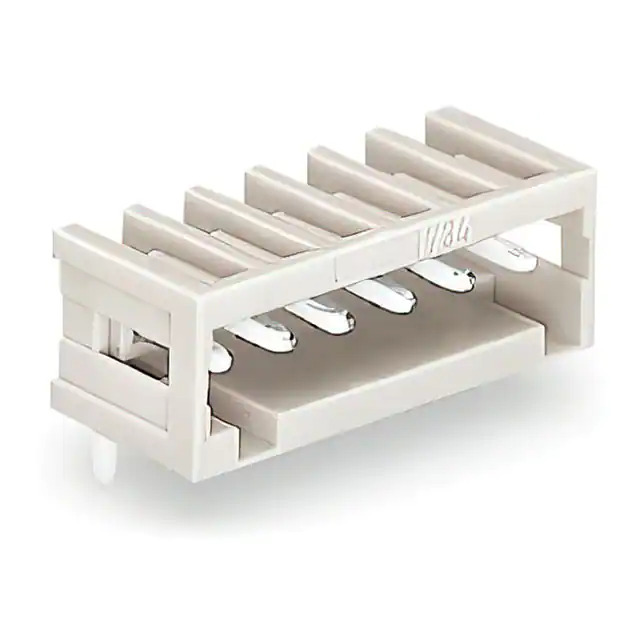

733-365 WAGO Corporation
Same model may have multiple batches, images only for reference.

733-365

Part No 733-365
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 0.8 X 0.8 MM SO / 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.098" (2.50mm) 90°, Right Angle Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMICRO
Package Box
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Positions Per Level 5
Number of Levels 1
Pitch 0.098" (2.50mm)
Header Orientation 90°, Right Angle
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 6A
Voltage - IEC 320 V
Current - UL 4 A
Voltage - UL 150 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Gray
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.146" (3.70mm)
Insulation Height 0.307" (7.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364625-733-365
Ultra Librarian 3D Model Ultra Librarian 733-365 CAD Model

Description

The MCSMICRO series from WAGO Corporation offers a reliable and high-quality solution for your terminal block needs.

  • Design: Header, with Male Pins and Shrouded Design
  • Temperature Range: -60°C to 100°C
  • Insulation Height: 0.307" (7.80mm)
  • Contact Material: Electrolytic Copper
  • Flammability Rating: UL94 V-0
  • Orientation: 90° Right Angle
  • Current Rating (IEC): 6A
  • Current Rating (UL): 4A
  • Color: Gray
