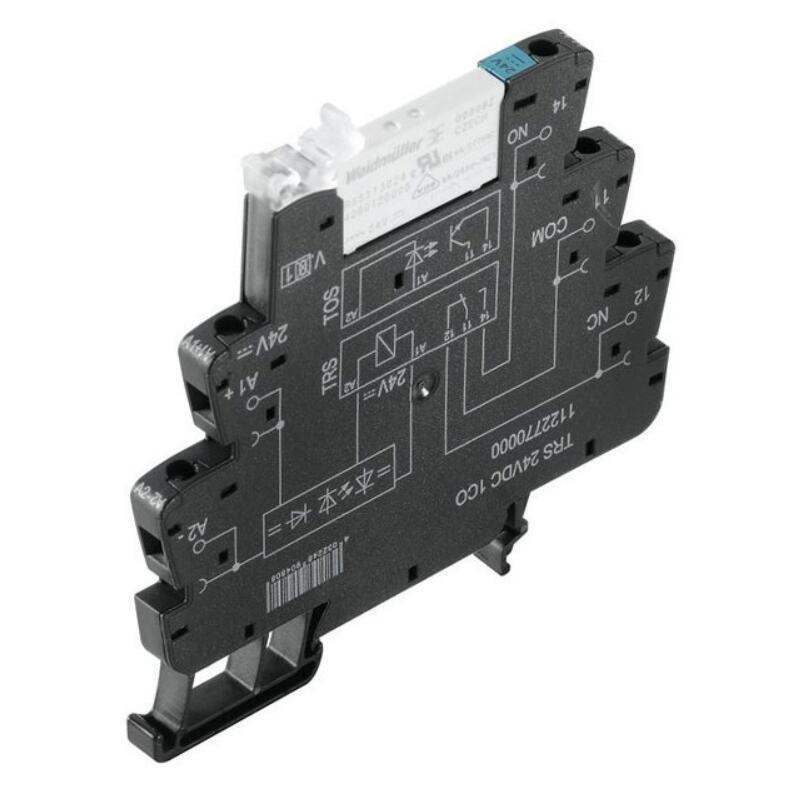

1122770000Weidmüller
Same model may have multiple batches, images only for reference.

1122770000

Part No 1122770000
Manufacturer Weidmuller
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 6A 24V
Datasheet
1122770000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204278-1122770000
Win Source Part Number Cross
Manufacturer Weidmüller
Category Relays Power Relays, Over 2 Amps
Series TERMSERIES
Package Bulk
Product Status Active
Mounting Type DIN Rail
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 6 A
Ultra Librarian 3D Model Ultra Librarian 1122770000 CAD Model

Description

TERMSERIES relay module, complete modules consisting of a relay and a base with AC/DC/UC coils, available in different versions:
• With screw and tension-clamp connection
• AgNi contact, optionally with hard gold-plated contacts
• 1 and 2 COs
• Optionally with multiple-voltage input: 24...230 V UC
• With various protective circuits in the input (free-wheel diode, RC element)
• Illuminated ejection lever
