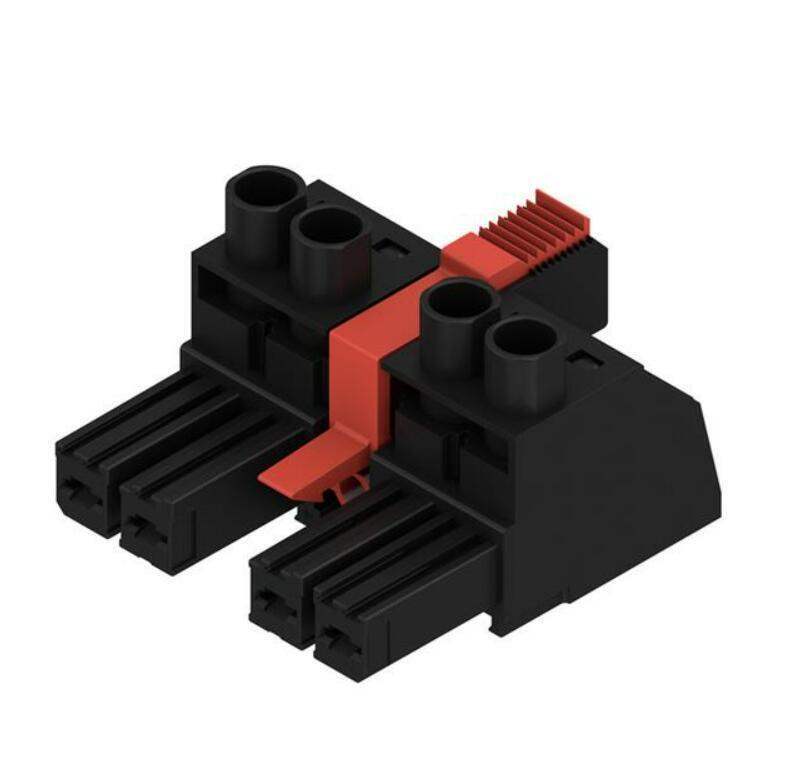

1312730000 Weidmüller
Same model may have multiple batches, images only for reference.

1312730000

Part No 1312730000
Manufacturer Weidmuller
Catalog Headers, Plugs and Sockets
Description PCB PLUG-IN CONNECTOR, 7.62 MM,
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Package Box
Product Status Active
Win Source Part Number WS1205862-1312730000
Package Box
Product Status Active
Type Plug, Female Sockets
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.300" (7.62mm)
Plug Wire Entry 180°
Termination Style Screw - Clamping Yoke (Tension Sleeve)
Mounting Type Free Hanging (In-Line)
Current - IEC 57 A
Voltage - IEC 1 kV
Current - UL 40.5 A
Voltage - UL 600V
Wire Gauge or Range - AWG 8-24 AWG
Wire Gauge or Range - mm2 0.2-10mm²
Color Black
Operating Temperature -50°C ~ 125°C
Contact Mating Finish Tin
Ultra Librarian 3D Model Ultra Librarian 1312730000 CAD Model

Description

180° female plug with a 7.62 pitch for IT power networks. Meets the requirements of UL1059 600 V class C. In combination with male header SV 7.62 IT.. with leading contact. Meets the extended requirements on 5.5 mm touch safety for IT power networks as per IEC 61800-5-1 for 400 V to earth. The self-locking (optionally also screwable) middle flange reduces the space requirements by one pitch width in comparison with conventional solutions. On request also available without middle flange interlock.
