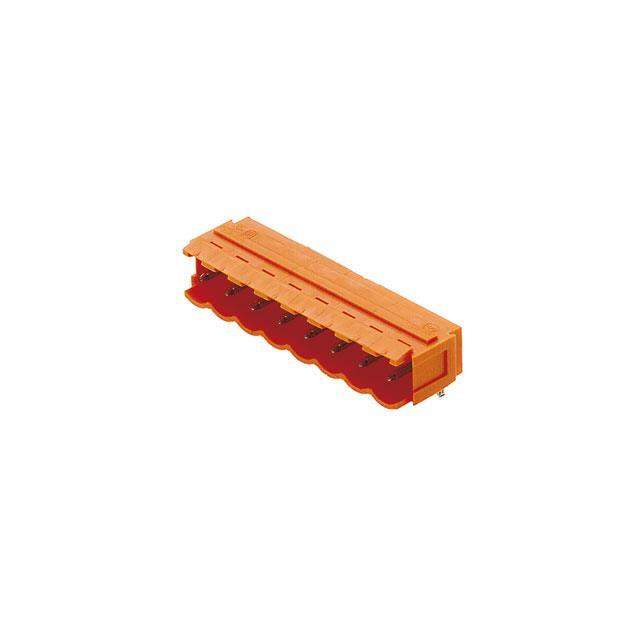

Same model may have multiple batches, images only for reference.

1515360000

Get a Quote

Part No	1515360000
Manufacturer	Weidmuller
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 6POS 90DEG 5.08MM / 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	Weidmüller
Series	Omnimate SL
Package	Bulk
Product Status	Obsolete
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Positions Per Level	6
Number of Levels	1
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	12A
Voltage - IEC	250 V
Current - UL	15 A
Voltage - UL	300 V
Color	Orange
Temperature Range - Operating	-20°C ~ 100°C
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Housing Material	Polybutylene Terephthalate (PBT)
Contact Tail Length	0.177" (4.50mm)
Insulation Height	0.335" (8.51mm)
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350097-1515360000
Ultra Librarian 3D Model	Ultra Librarian 1515360000 CAD Model

Alternative Products

Description

The Omnimate SL series header, male pins, shrouded (4 side) is a high-quality electronic component designed for use in terminal blocks. Omnimate SL is designed for use in terminal blocks.

Number of Positions Per Level: 6
Number of Levels: 1
Pitch: 0.200" (5.08mm)
Header Orientation: 90°, Right Angle
Termination Style: Solder
Current - IEC: 12A
Current - UL: 15A
Voltage - IEC: 250V
Voltage - UL: 300V
Contact Material: Copper Alloy
Contact Finish - Mating: Tin
Housing Material: Polybutylene Terephthalate (PBT)
Flammability Rating: UL94 V-0
Operating Temperature: -20°C ~ 100°C
