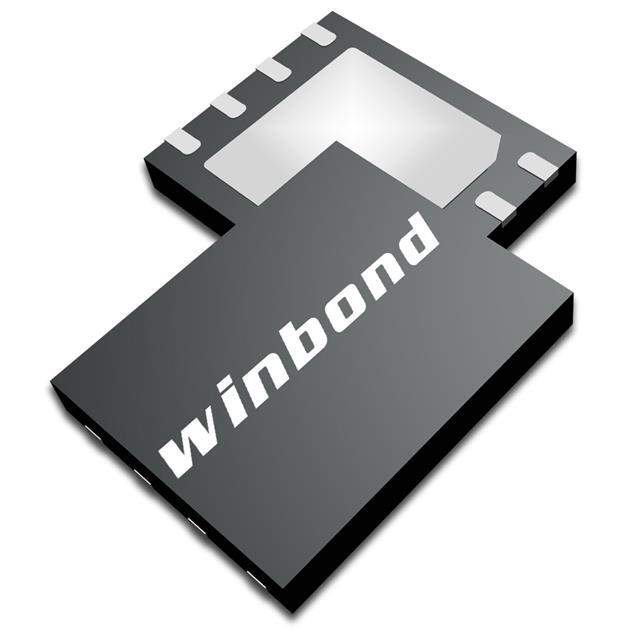

W25N04KVZEIU Real Image
Same model may have multiple batches, images only for reference.

W25N04KVZEIU

Part No W25N04KVZEIU
Manufacturer Winbond Electronics
Catalog Memory
Description IC FLASH 4GBIT SPI/QUAD 8WSON / FLASH - NAND Memory IC 4Gbit SPI - Quad I/O 104 MHz 8-WSON (8x6)
Datasheet
W25N04KVZEIU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Winbond Electronics
Series SpiFlash®
Package Tray
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NAND
Memory Size 4Gbit
Memory Organization 512M x 8
Memory Interface SPI - Quad I/O
Clock Frequency 104 MHz
Write Cycle Time - Word, Page 250µs
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 8-WDFN Exposed Pad
Supplier Device Package 8-WSON (8x6)
Base Product Number W25N04
Standard Package 480
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 1348120-W25N04KVZEIU
Ultra Librarian 3D Model Ultra Librarian W25N04KVZEIU CAD Model

Description

The Winbond Electronics W25N04KVZEIU is a 4Gbit non-volatile FLASH-NAND memory integrated circuit (IC) that operates with a voltage supply of 2.7V to 3.6V and a clock frequency of 104 MHz.

  • Memory Interface: SPI-Quad I/O
  • Write Cycle Time: 250 µs
  • Mounting: Surface Mount
  • Package: 8-WDFN exposed pad
  • Series: SiFlash
  • Package: Tray
  • Standard Packages: 480
  • REACH: Unaffected
  • ECCN: 3A991B1A
  • MSL Level: 3 (168 hours)
  • HTSUS: 8542.32.0071
