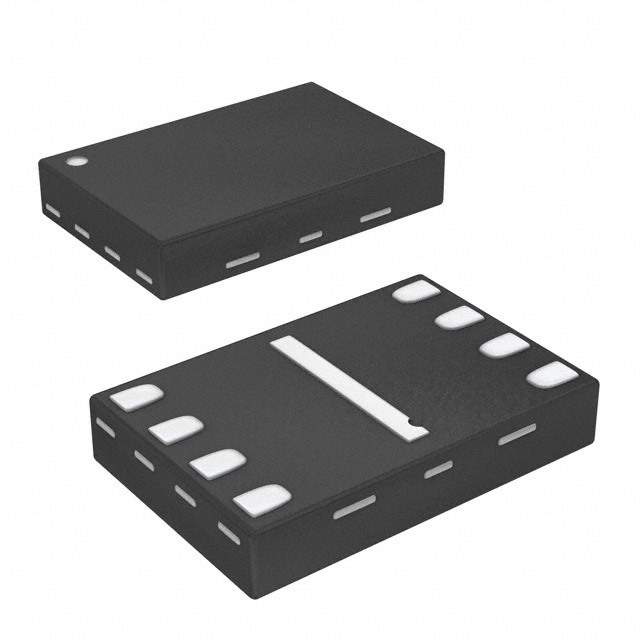

The W25X20CLUXIG is a 2Mb Serial Flash memory device from Winbond Electronics. It offers a flexible and cost-effective solution for storage applications requiring low pin count, small package size, and low power consumption. This device is ideal for storing code and data in a wide range of electronic products.

Applications

• Consumer Electronics: Used in set-top boxes, DVD players, and LCD TVs for storing firmware and user settings.
• Computer Peripherals: Found in printers, scanners, and USB drives to store configuration data and embedded software.
• Networking Devices: Employed in routers, modems, and network interface cards (NICs) for storing boot code and network parameters.
• Industrial Control Systems: Used in programmable logic controllers (PLCs) and human-machine interfaces (HMIs) for storing application code and configuration settings.
• Medical Devices: Implemented in portable medical devices for storing patient data and device firmware.

Features

• 2Mb (256K x 8) Memory: Provides ample storage capacity for a variety of applications.
• Serial Peripheral Interface (SPI): Utilizes a standard SPI interface for easy integration with microcontrollers and other host devices.
• Dual/Quad SPI Support: Offers increased data throughput with Dual and Quad SPI modes.
• Clock Frequency up to 80MHz: Enables fast data transfer rates.
• Page Program (256 Bytes per Page): Allows efficient data programming.
• Sector Erase (4KB): Facilitates quick and efficient sector-level data erasure.
• Block Erase (32KB/64KB): Offers block-level erasure for large data segments.
• Write Protection: Provides hardware and software write protection mechanisms to prevent accidental data corruption.
• Low Power Consumption: Operates with low power consumption, making it suitable for battery-powered applications.
• Small Package Options: Available in compact packages like SOIC, VSOP, and WSON, saving board space.

Benefits

• Cost-Effective Storage Solution: Offers a competitive price point for embedded storage applications.
• Easy Integration: Standard SPI interface simplifies integration with various microcontrollers and systems.
• High Performance: Fast clock frequency and Dual/Quad SPI support enable high data throughput.
• Reliable Data Storage: Provides robust data retention and endurance.
• Flexible Erase Options: Sector and block erase options allow for efficient data management.
• Enhanced Security: Write protection features prevent unauthorized data modification.
• Low Power Consumption: Extends battery life in portable devices.

Additional Details

The W25X20CLUXIG operates over a wide voltage range, typically from 2.7V to 3.6V. It features a data retention of over 20 years and an endurance of 100,000 program/erase cycles per sector. The device is commonly used in applications where non-volatile memory is required for storing configuration data, firmware, or user settings. Its small package size and low power consumption make it suitable for portable and space-constrained applications.
