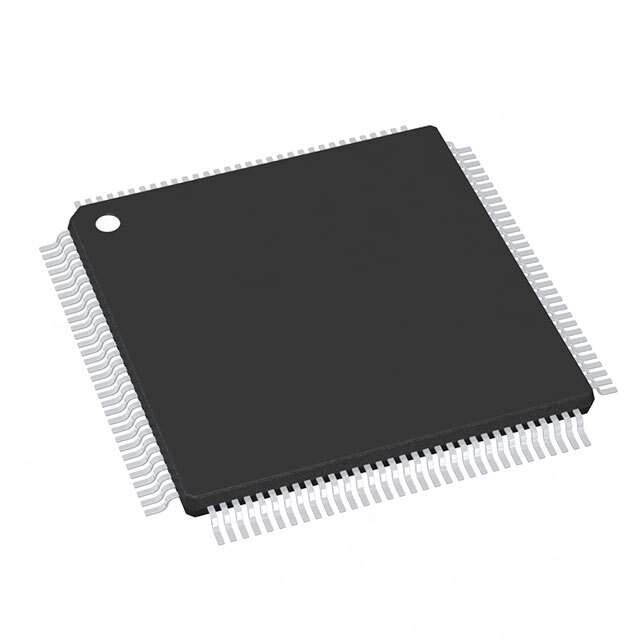

The Winbond WPC8769LDG is a Super I/O controller. Super I/O controllers are essential components in PC systems, responsible for managing a variety of low-bandwidth peripheral devices. These devices typically include serial ports, parallel ports, keyboard and mouse interfaces, floppy disk controllers, and hardware monitoring functions.

Applications

• Desktop PCs
• Laptop Computers
• Embedded Systems
• Industrial PCs

Features

• Multiple Serial Ports: Supports several UARTs for serial communication.
• Parallel Port: Provides a standard parallel port for printer or other legacy device connectivity.
• Keyboard and Mouse Interface: Manages the PS/2 keyboard and mouse interfaces.
• Floppy Disk Controller: Supports legacy floppy disk drives.
• Hardware Monitoring: Monitors system voltages, temperatures, and fan speeds.
• GPIO: Offers general-purpose input/output pins for flexible system control.
• LPC Interface: Utilizes the LPC (Low Pin Count) interface for communication with the chipset.

Benefits

• Legacy Device Support: Enables compatibility with older peripherals and devices.
• System Monitoring: Provides critical system health information to prevent failures.
• Flexibility: Offers configurable options to adapt to different system requirements.
• Reduced Component Count: Integrates multiple functions into a single chip, simplifying board design and reducing cost.
• Power Management: Supports power-saving modes to reduce energy consumption.

Additional Details

The WPC8769LDG is typically connected to the LPC bus of the motherboard chipset. It uses registers accessible through the LPC interface for configuration and control. The specific details regarding pinout, register maps, and operating characteristics are available in the device's datasheet from Winbond. The controller also features advanced power management capabilities, allowing the system to enter low-power states when idle, thus conserving energy. Its integration simplifies motherboard design and reduces the overall system cost by consolidating multiple functionalities into a single chip.
