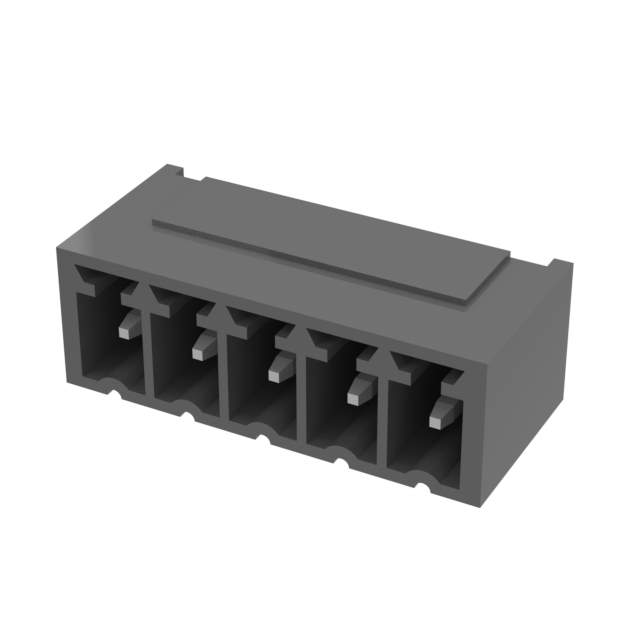

691701340005B Real Image1 691701340005B Real Image2
Same model may have multiple batches, images only for reference.
691701340005B Real Image1 691701340005B Real Image2
691701340005B Real Image1 691701340005B Real Image2
Same model may have multiple batches, images only for reference.

691701340005B

Part No 691701340005B
Manufacturer Wurth Electronics Inc
Catalog Headers, Plugs and Sockets
Description 3.81 MM TERMINAL BLOCK HEADER, H / 5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) 90°, Right Angle Through Hole
Datasheet
691701340005B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Wurth Electronics Inc
Series WR-TBL Series 7013B
Package Tape & Reel
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 5
Positions Per Level 5
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation 90°, Right Angle
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC -
Current - UL 10 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm2 -
Color Black
Temperature Range - Operating -40°C ~ 105°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Brass
Housing Material Liquid Crystal Polymer (LCP)
Contact Tail Length 0.102" (2.60mm)
Insulation Height 0.287" (7.30mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 450 pcs
Win Source Part Number 1381019-691701340005B
Ultra Librarian 3D Model Ultra Librarian 691701340005B CAD Model

Description

The WR-TBL Series 7013B is a header connector with male pins and a shrouded design.

  • Category: Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
  • Positions per Level: 5
  • Levels: 5
  • Pitch: 0.150" (3.81mm)
  • Header Orientation: 90° Right Angle
  • Termination Style: Solder
  • UL Rating: 10 A, 300 V
  • Contact Material: Brass
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Mounting Type: Through-Hole
  • Insulation Height: 0.287" (7.30mm)
  • Operating Temperature: -40°C to 105°C
  • Contact Tail Length: 0.102" (2.60mm)
