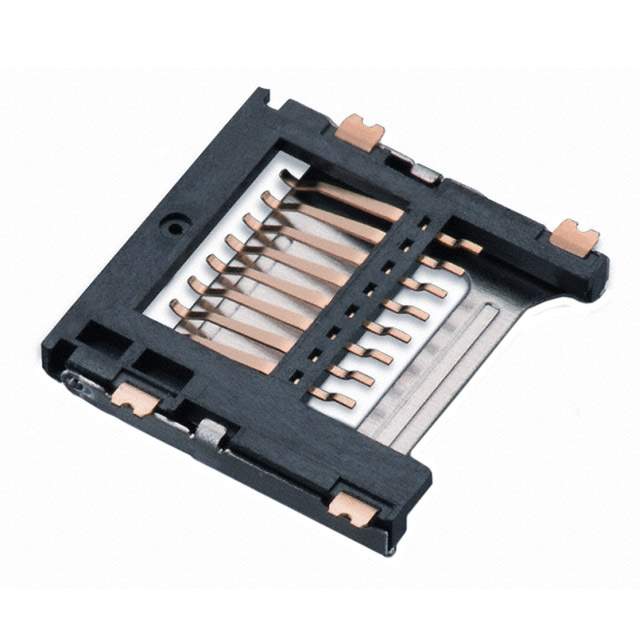

693072010801 Real Image
Same model may have multiple batches, images only for reference.

693072010801

Part No 693072010801
Manufacturer Wurth Electronics Inc
Catalog Memory Connectors - PC Card Sockets
Description CONN MICRO SD CARD HINGED TYPE / 8 Position Card Connector Secure Digital - microSD? Surface Mount, Right Angle Gold
Datasheet
693072010801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Wurth Electronics Inc
Series WR-CRD
Package Tape & Reel
Product Status Active
Card Type Secure Digital - microSD™
Number of Positions 8
Connector Type Connector and Ejector
Insertion, Removal Method Hinged Lid
Mounting Type Surface Mount, Right Angle
Height Above Board 0.069" (1.75mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Base Product Number 69307
Standard Package 1,200 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 848555-693072010801
Ultra Librarian 3D Model Ultra Librarian 693072010801 CAD Model

Description

The WR-CRD series from Wurth Electronics Inc. offers a range of PC card sockets for memory applications. This particular model, with a part number of 848555-693072010801, is a connector and ejector type designed for Secure Digital - microSD™ cards.

  • Type: Connector and ejector
  • Card Type: Secure Digital - microSD™
  • Positions: 8
  • Features: Hinged lid insertion and removal
  • Mounting Type: Surface mount, right angle
  • Height Above Board: 0.069" (1.75mm)
