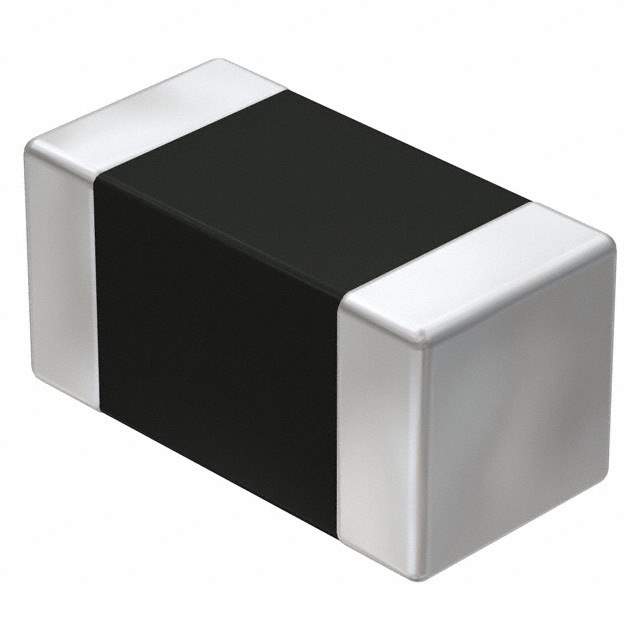

742792622 Real Image

Same model may have multiple batches, images only for reference.

742792622 Real Image

Same model may have multiple batches, images only for reference.

742792622

Get a Quote

Part No	742792622
Manufacturer	Wurth Electronics Inc
Catalog	Ferrite Beads and Chips
Description	FERRITE BEAD 180 OHM 0603 1LN
Datasheet	742792622 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters - Ferrite Beads and Chips
Mfr	Wurth Electronics Inc
Series	WE-CBF
Package	Tape & Reel
Product Status	Active
Filter Type	Signal Line
Number of Lines	1
Impedance @ Frequency	180 Ohms @ 100 MHz
Current Rating (Max)	500mA
DC Resistance (DCR) (Max)	300mOhm
Temperature Range - Operating	-55°C ~ 125°C
Package / Case	0603 (1608 Metric)
Mounting Type	Surface Mount
Height (Max)	0.039" (1.00mm)
Size / Dimension	0.063" L x 0.032" W (1.60mm x 0.80mm)
Standard Package	4,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Win Source Part Number	857179-742792622
Ultra Librarian 3D Model	Ultra Librarian 742792622 CAD Model

Description

The WE-CBF series from Wurth Electronics Inc offers a ferrite bead filter designed for signal line applications.

Size: 0.063" L x 0.032" W (1.60mm x 0.80mm)
Maximum Height: 0.039" (1.00mm)
Current Rating: 500mA
Impedance @ 100 MHz: 180 Ohms
DC Resistance: 300mOhm
Mounting Type: Surface Mountable
Package: 0603 (1608 Metric)
Temperature Range: -55°C to 125°C
Standard Package: 4,000 pcs
Product Status: Active
Manufacturer: Wurth Electronics Inc
