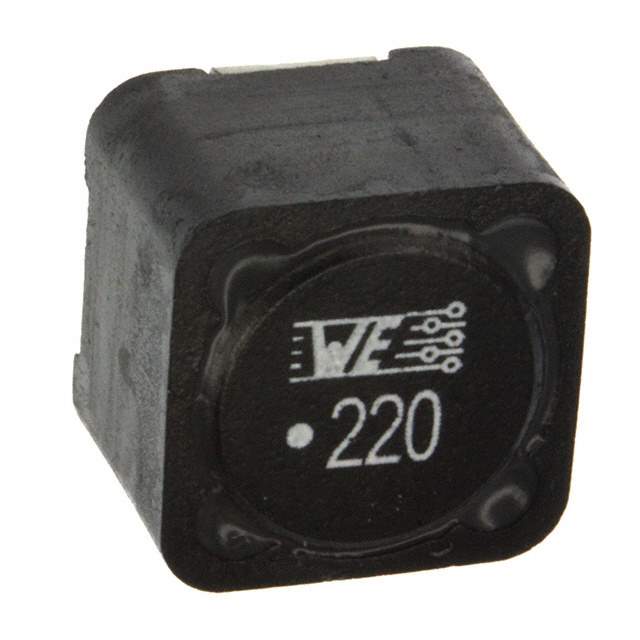

7447709220

Name: 7447709220
Brand: Wurth Electronics Inc
SKU: 547363
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	7447709220
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	POWER-CHOKE WE-PD \| FIXED IND 22UH 5.3A 28 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Wurth Electronics Inc.
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	22μH
Tolerance	±20%
Current Rating (Amps)	5.3A
Current - Saturation	6.5A
Shielding	Shielded
DC Resistance (DCR)	28mOhm Max
Frequency - Self Resonant	10MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Parts Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum)	0.394" (10.00mm)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1130051-7447709220
Manufacturer Homepage	www.we-online.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 7447709220 CAD Model

Alternative Products

Description

This Wurth Electronics Inc. wirewound inductor has an inductance of 22μH with a ±20% tolerance.

Inductance: 22μH
Tolerance: ±20%
AEC-Q200 Qualified: Yes
Current Saturation: 6.5A
Package: Shielded
Core Material: Ferrite
DC Resistance (DCR): 28mOhm max
Frequency Self-Resonant: 10MHz
Package: Reel
Manufacturer Pack Quantity: 1
Operating Temperature Range: -40°C to 125°C
Current Rating: 5.3A
Popularity: Medium
