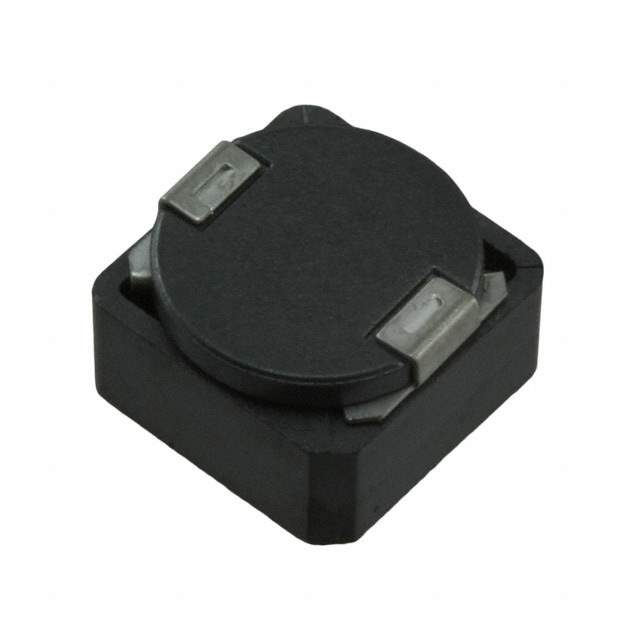

Same model may have multiple batches, images only for reference.

7447797050

Name: 7447797050
Brand: Wurth Electronics Inc
SKU: 857589
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447797050
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 500NH 13.2A 5 MOHM SMD
Datasheet	7447797050 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PDF
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Nickel Zinc Ferrite (NiZn)
Inductance	500 nH
Tolerance	±30%
Current Rating (Amps)	13.2 A
Current - Saturation (Isat)	23A
Shielding	Shielded
DC Resistance (DCR)	5mOhm Max
Frequency - Self Resonant	182MHz
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max)	0.177" (4.50mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857589-7447797050
Ultra Librarian 3D Model	Ultra Librarian 7447797050 CAD Model

Alternative Products

Description

The WE-PDF series is a drum core, wirewound inductor designed for various electronic applications.

Size: 0.402" L x 0.402" W (10.20mm x 10.20mm)
Inductance: 500 nH
Tolerance: ±30%
Shielded: Shielded
Package: Tape & Reel
Core Material: Nickel zinc ferrite (NiZn)
DC Resistance (DCR): 5mOhm max
Current Rating: 13.2 A
Temperature Range: -40°C to 150°C
Manufacturer: Wurth Electronics Inc
