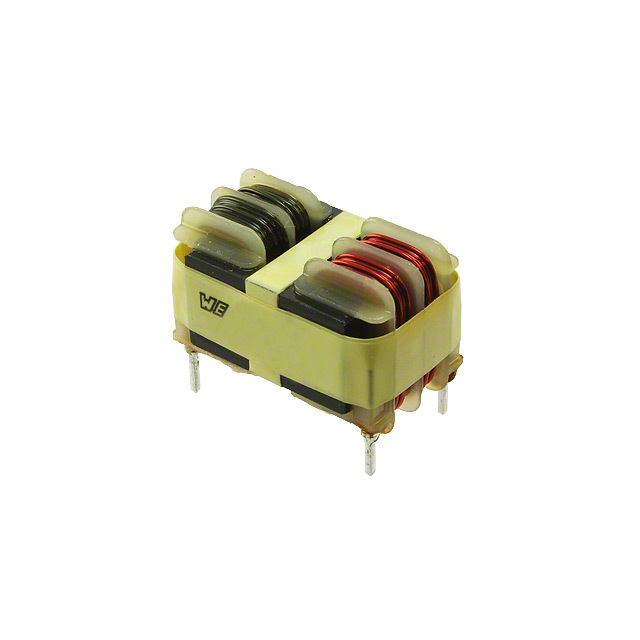

744825605

Part No 744825605
Manufacturer Wurth Electronics Inc
Catalog Common Mode Chokes
Description CMC 5MH 6A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 5 mH @ 10 kHz
Current Rating (Max) 6A
Voltage Rating - AC 250V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 1.181" L x 0.827" W (30.00mm x 21.00mm)
Height (Max) 1.378" (35.00mm)
Case / Package Vertical, 4 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1507329-744825605
Ultra Librarian 3D Model Ultra Librarian 744825605 CAD Model

Description

N
