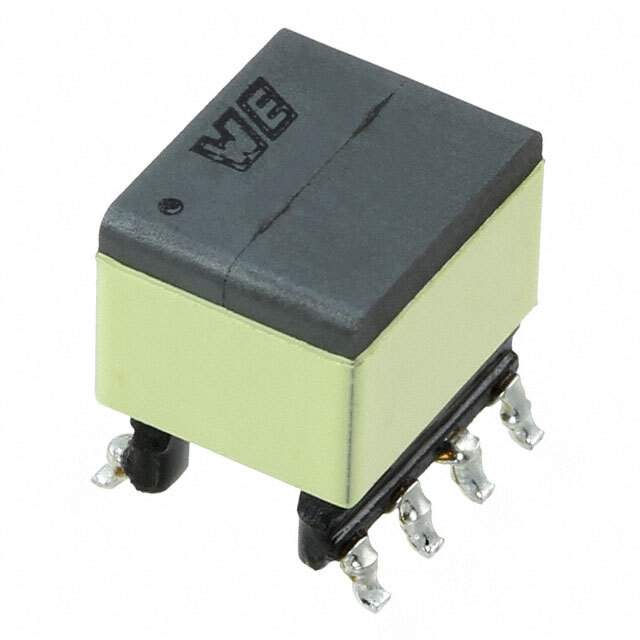

750314839

Part No 750314839
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description XFRMR RES CONV DC/DC CONV SMD / Resonant Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 30 ~ 70kHz Surface Mount
Datasheet
750314839 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Switching Converter, SMPS Transformers
Mfr Wurth Electronics Inc
Series WE-FW, MID-HB
Package Tape & Reel
Type For DC/DC Converters
Applications Resonant Converters
Intended Chipset -
Chipset Manufacturer -
Voltage - Primary 3 ~ 5.2V
Voltage - Auxiliary -
Voltage - Isolation 1500Vrms
Inductance @ Frequency 3mH @ 100kHz
Frequency 30 ~ 70kHz
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Surface Mount
Size / Dimension -
Height - Seated (Max) 0.420" (10.67mm)
Footprint 0.385" L x 0.360" W (9.78mm x 9.14mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 300 pcs
Win Source Part Number 1381164-750314839
Ultra Librarian 3D Model Ultra Librarian 750314839 CAD Model

Description

The WE-FW, MID-HB series transformers from Wurth Electronics Inc are high-quality switching converter transformers designed for DC/DC converters.

  • Package: Tape & Reel
  • Height: 0.420" (10.67mm)
  • Application: Resonant Converters
  • Inductance: 3mH @ 100kHz
  • Voltage Isolation: 1500Vrms
  • Primary Voltage: 3 ~ 5.2V
  • Frequency Range: 30 ~ 70kHz
  • Temperature Range: -40°C to 100°C
