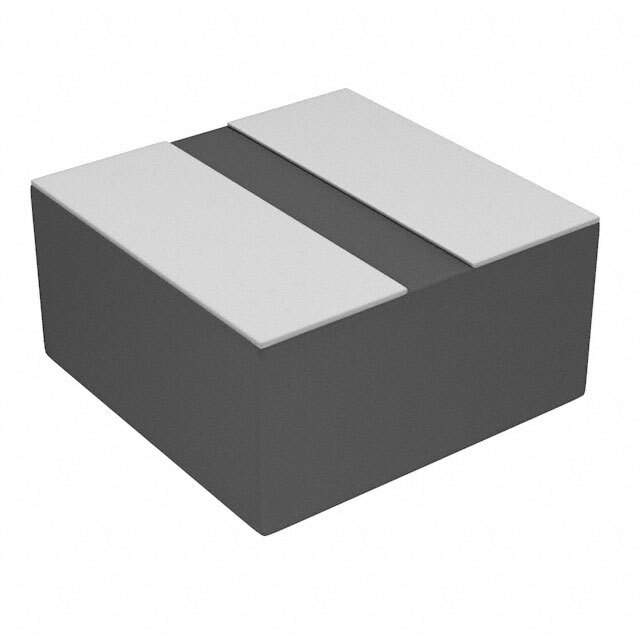

78438335022 Real Image
Same model may have multiple batches, images only for reference.

78438335022

Part No 78438335022
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Datasheet
78438335022 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Würth Elektronik
Series WE-MAIA
Package Tape & Reel
Type Molded
Material - Core Iron Alloy
Inductance 2.2 µH
Tolerance ±30%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 108mOhm Max
Frequency - Self Resonant 45MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 1212 (3030 Metric)
Supplier Device Package 3015
Dimension 0.118" L x 0.118" W (3.00mm x 3.00mm)
Height - Seated (Max) 0.059" (1.50mm)
Other Names 732-6939-6,732-6939-2,732-6939-1
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1272491-78438335022
Ultra Librarian 3D Model Ultra Librarian 78438335022 CAD Model

Description

The WE-MAIA series is a molded type of fixed inductors that are shielded to ensure high performance.

  • Series: WE-MAIA
  • Type: Molded, Shielded
  • Inductance: 2.2 µH
  • Tolerance: ±30%
  • DC Resistance: 108mOhm Max
  • Current Rating: 1.8 A
  • Frequency Self-Resonant: 45MHz
  • Material: Iron Alloy
  • Height: 0.059" (1.50mm)
  • Dimension: 0.118" L x 0.118" W (3.00mm x 3.00mm)
  • Mounting Type: SMD (SMT)
  • Package/Case: 1212 (3030 Metric)
  • AEC-Q200: Yes
  • Supplier Device Package: 3015
  • Operating Temperature: -40°C ~ 125°C
  • REACH: Unaffected
  • Standard Package: 1,000
