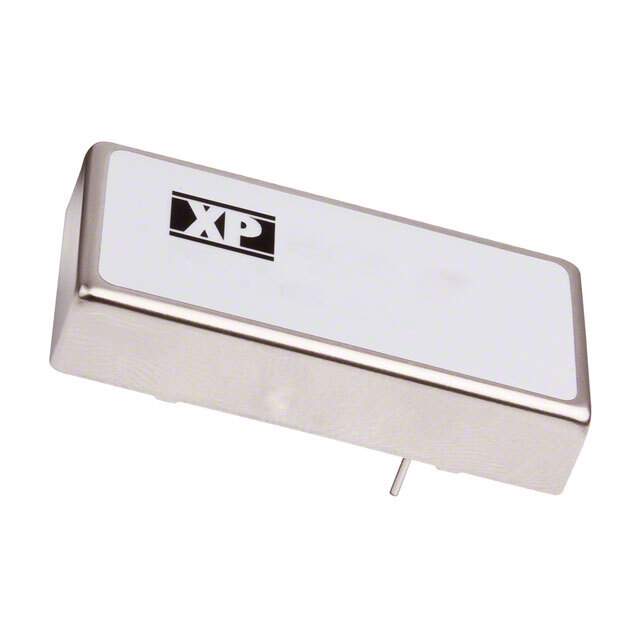

JCK1524S12 Real Image
Same model may have multiple batches, images only for reference.

JCK1524S12

Part No JCK1524S12
Manufacturer XP Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 15W / Isolated Module DC DC Converter 1 Output 12V 1.25A 18V - 36V Input
Datasheet
JCK1524S12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr XP Power
Series JCK (15W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 1.25A
Power (Watts) 15 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP, SCP, UVLO
Temperature Range - Operating -40°C ~ 100°C
Efficiency 89%
Mounting Type Through Hole
Package / Case 5-DIP Module
Size / Dimension 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Base Product Number JCK1524
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1337343-JCK1524S12
Ultra Librarian 3D Model Ultra Librarian JCK1524S12 CAD Model

Description

The JCK1524S12 is a 15W isolated module DC-DC converter from XP Power that is designed for ITE (Commercial) applications.

  • Type: Isolated Module
  • Number of Outputs: 1
  • Voltage - Input (Min): 18V
  • Voltage - Input (Max): 36V
  • Voltage - Output 1: 12V
  • Current - Output (Max): 1.25A
  • Power (Watts): 15W
  • Applications: ITE (Commercial)
  • Features: OCP, SCP, UVLO
  • Efficiency: 89%
  • Voltage - Isolation: 1.5 kV
  • Operating Temperature: -40°C ~ 100°C
  • Mounting Type: Through Hole
  • Package / Case: 5-DIP Module
  • Size / Dimension: 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
