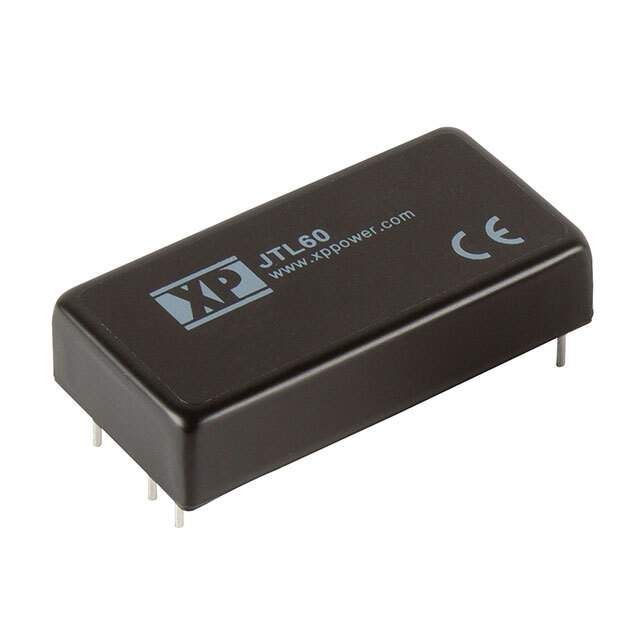

Same model may have multiple batches, images only for reference.

JTL6024D15

Name: JTL6024D15
Brand: XP Power
SKU: 1341072
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	JTL6024D15
Manufacturer	XP Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 60W / Isolated Module DC DC Converter 2 Output 15V -15V 2A, 2A 9V - 36V Input
Datasheet	JTL6024D15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	XP Power
Series	JTL60 (60W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	9V
Voltage - Input (Max)	36V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	2A, 2A
Power (Watts)	60 W
Voltage - Isolation	1.6 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OVP, SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	91%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	2.00" L x 1.00" W x 0.45" H (50.8mm x 25.4mm x 11.4mm)
Control Features	Enable, Active High
Standard Number	62368-1
Base Product Number	JTL6024
Standard Package	10
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1341072-JTL6024D15
Ultra Librarian 3D Model	Ultra Librarian JTL6024D15 CAD Model

Alternative Products

Description

The JTL60 series isolated module DC-DC converter is a high-performance converter designed for commercial ITE applications.

Series: JTL60
Application: Commercial ITE
Power Rating: 60W
Outputs: 2
Output Current (Max): 2A each
Input Voltage: 9V to 36V
Voltage Isolation: 1.6kV
Features: Remote On/Off, OVP, SCP
Efficiency: 91%
Package: 6-DIP Module
Temperature Range: -40°C to 85°C
Standard Number: 62368-1
Package Type: Tube
Standard Package Quantity: 10
