Same model may have multiple batches, images only for reference.

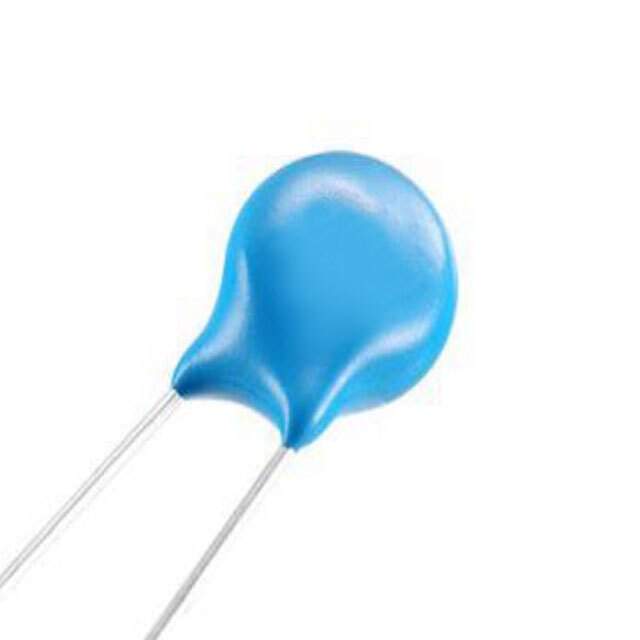

820KD07 Real Image
Same model may have multiple batches, images only for reference.

820KD07

Part No 820KD07
Manufacturer Yageo
Catalog TVS - Varistors, MOVs
Description MOV / 82 V 1.75 kA Varistor 1 Circuit Through Hole Disc 7mm
Datasheet
820KD07 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr YAGEO
Series 7F
Package Bag
Maximum AC Volts 50 V
Maximum DC Volts 65 V
Varistor Voltage (Min) 74 V
Varistor Voltage (Typ) 82 V
Varistor Voltage (Max) 90 V
Current - Surge 1.75 kA
Energy 10J
Number of Circuits 1
Capacitance @ Frequency 600 pF @ 1 kHz
Temperature Range - Operating -40°C ~ 105°C (TA)
Mounting Type Through Hole
Package / Case Disc 7mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names 13-820KD07
Standard Package 1,000
Win Source Part Number 964376-820KD07
Ultra Librarian 3D Model Ultra Librarian 820KD07 CAD Model

Description

The 895717 is a TVS varistor from the 7F series manufactured by Yageo.

  • Capacitance: 600 pF @ 1 kHz
  • Varistor Voltage Range: 74 V to 90 V
  • Maximum Surge Current: 1.75 kA
  • Maximum Energy Rating: 10J
  • Operating Temperature Range: -40°C to 105°C
  • Mounting Type: Through-Hole
  • Package: Disc 7mm
  • Maximum AC Voltage: 50 V
  • Maximum DC Voltage: 65 V
