The ZXCL300H5 is a CMOS step-up DC-DC converter manufactured by Zetex Semiconductors (now part of Diodes Incorporated). This converter is designed to generate a higher output voltage from a lower input voltage, making it suitable for battery-powered applications and other situations where a higher voltage is needed. Its CMOS design ensures low quiescent current for extended battery life.

Applications

• Battery-powered devices: Used to generate higher voltages for powering displays, LEDs, and other components in portable electronic devices.
• LED drivers: Employed to drive LEDs with constant current, ensuring consistent brightness and long life.
• LCD bias supplies: Utilized to generate the bias voltages required for LCD displays.
• Portable instrumentation: Used in portable test and measurement equipment to generate the necessary voltages for operation.
• Sensor power supplies: Provides a stable voltage boost for sensor circuits requiring higher voltages than the available supply.

Features

• Step-up DC-DC conversion: Generates a higher output voltage from a lower input voltage.
• CMOS design: Offers low quiescent current for extended battery life.
• Adjustable output voltage: Allows for adjusting the output voltage using external resistors.
• Internal oscillator: Includes an internal oscillator for generating the switching frequency.

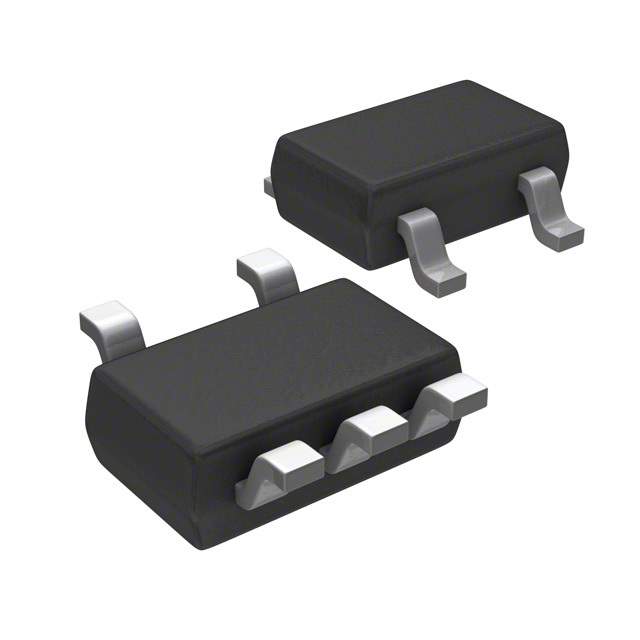

• Small package: Available in a small surface mount package for space-constrained applications.

Benefits

• Extended battery life: Minimizes power consumption, extending battery life in portable devices.
• Flexible voltage generation: Provides a flexible solution for generating higher voltages from lower input voltages.
• Compact size: Enables use in space-constrained applications.
• Simplified design: Easy to integrate into existing circuit designs.
• Cost-effective solution: Provides a cost-effective solution for step-up DC-DC conversion.

Additional Details

The ZXCL300H5 typically requires external components such as inductors, capacitors, and resistors to function properly. The specific values of these components depend on the desired output voltage and current. Detailed application notes, schematics, and component selection guidelines can be found in the official Diodes Incorporated datasheet. Always refer to the official datasheet for the most accurate and up-to-date specifications and application guidelines before using this component in a design.
