Same model may have multiple batches, images only for reference.

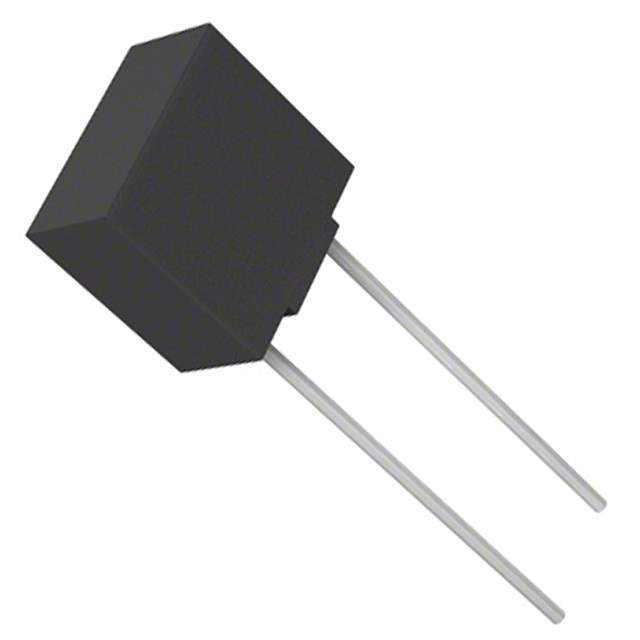

SS-5-3.15A-BK Real Image
Same model may have multiple batches, images only for reference.

SS-5-3.15A-BK

Part No SS-5-3.15A-BK
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 3.15A 250VAC RADIAL / 3.15 A 250 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series SS-5
Package Bulk
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3.15 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case Radial, Box
Breaking Capacity @ Rated Voltage 35A
Melting I2t 67
Approval Agency CQC, cULus, EK-MARK, SEMKO, VDE
Temperature Range - Operating -40°C ~ 125°C
Dimension 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm)
DC Cold Resistance 0.01675 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names SS-5-3-15A-BK
Standard Package 200
Win Source Part Number 1096136-SS-5-3.15A-BK
Ultra Librarian 3D Model Ultra Librarian SS-5-3.15A-BK CAD Model

Description

This electronic component is a fuse that belongs to the category of circuit protection.

  • Win Source Part Number: 1096136-SS-5-3.15A-BK series
  • Category: Circuit Protection
  • Features: Voltage rating, response time, breaking capacity, and DC cold resistance
