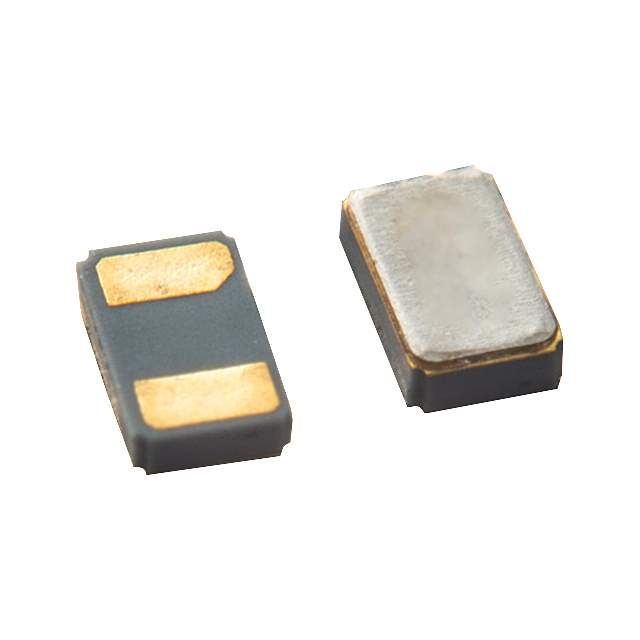

ABS05W-32.768KHZ-J-2-T Real Image
Same model may have multiple batches, images only for reference.

ABS05W-32.768KHZ-J-2-T

Part No ABS05W-32.768KHZ-J-2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 4PF SMD / 32.768 kHz ±20ppm Crystal 4pF 75 kOhms 2-SMD, No Lead
Datasheet
ABS05W-32.768KHZ-J-2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABS05W
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 4pF
ESR (Equivalent Series Resistance) 75 kOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.063" L x 0.039" W (1.60mm x 1.00mm)
Height - Seated (Max) 0.020" (0.50mm)
Standard Package 5,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1338287-ABS05W-32.768KHZ-J-2-T
Ultra Librarian 3D Model Ultra Librarian ABS05W-32.768KHZ-J-2-T CAD Model

Description

The ABS05W series kHz Crystal (Tuning Fork) electronic component is a high-quality crystal with a frequency of 32.768 kHz.

  • Series: ABS05W
  • Type: kHz Crystal (Tuning Fork)
  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 75 kOhms
  • Load Capacitance: 4pF
  • Package Type: Surface Mount 2-SMD, No Lead
  • Frequency Tolerance: ±20ppm
