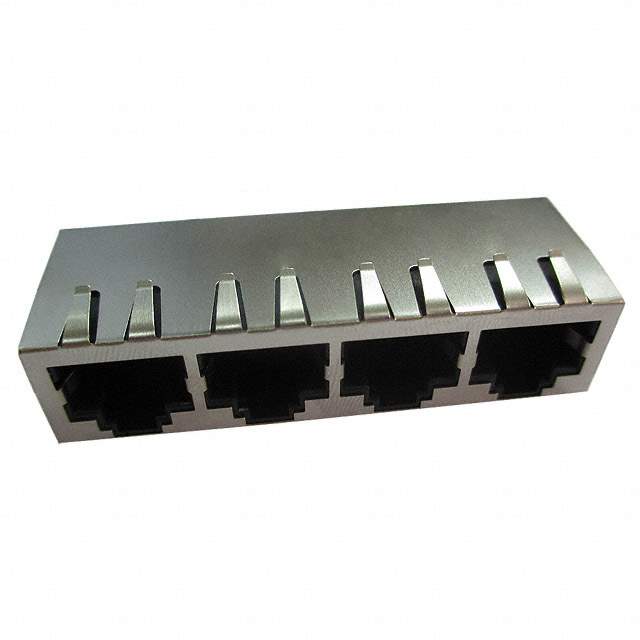

ARJ14A-MESB-MU2 Real Image
Same model may have multiple batches, images only for reference.

ARJ14A-MESB-MU2

Part No ARJ14A-MESB-MU2
Manufacturer Abracon LLC
Catalog Modular Connectors
Description CONN JACK 4PORT 100 BASE-T PCB  /  4 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
Datasheet
ARJ14A-MESB-MU2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Abracon LLC
Series ARJ14A
Package Tray
Connector Type RJ45
Number of Ports 4
Number of Rows 1
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.535" (13.59mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Lock
Tab Direction Down
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 6.00µin (0.152µm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names -ARJ14A-MESB-MU2,ARJ14AMESBMU2
Standard Package 60
Win Source Part Number 1229961-ARJ14A-MESB-MU2
Ultra Librarian 3D Model Ultra Librarian ARJ14A-MESB-MU2 CAD Model

Description

The ARJ14A-MESB-MU2 is a 1-row RJ45 connector with board lock feature manufactured by Abracon LLC.

  • Shielding: EMI Finger, Shielded
  • Connector Type: RJ45
  • Ports: 4
  • Cores Per Jack: 4
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 6.00 µin (0.152 µm)
  • Height Above Board: 0.535" (13.59mm)
  • Orientation: 90° Angle (Right)
  • Application: 10/100 Base-T and AutoMDIX
  • Temperature Range: 0°C ~ 70°C
  • Package: Tray
  • Standard Package Quantity: 60
  • LED: Does Not Contain LED
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.69.4040
