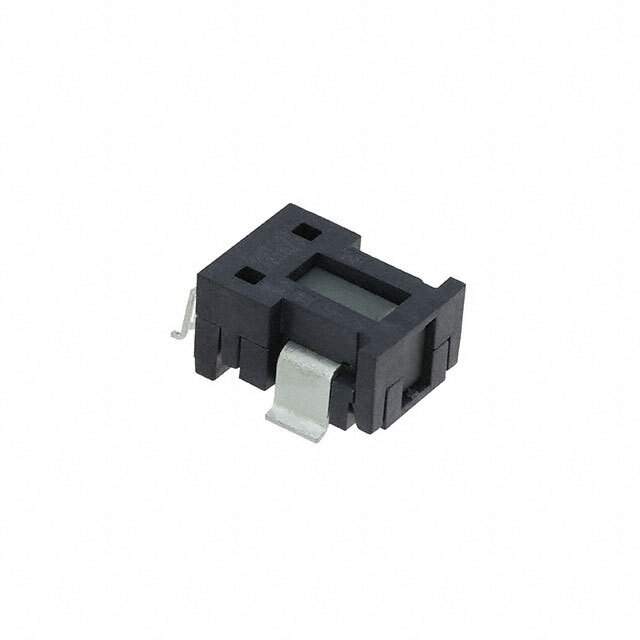

CQ2093 Real Image
Same model may have multiple batches, images only for reference.

CQ2093

Part No CQ2093
Manufacturer AKM Semiconductor Inc.
Catalog Current Transducers
Description SENSOR CURRENT HALL 20A AC/DC / Current Sensor 5V
Datasheet
CQ2093 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer AKM Semiconductor Inc.
Series CQ
Packaging Bulk
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 20A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 60mV/A
Frequency 400kHz
Linearity ±1%
Accuracy ±1%
Operating Supply Voltage 4.5 V ~ 5.5 V
Response Time 1μs
Maximum Supply Current 9mA
Operating Temperature Range -40°C ~ 90°C
Polarization Bidirectional
Mounting Style Through Hole
Package Module
Win Source Part Number 771747-CQ2093
Popularity Medium
Supply and Demand Status Balance
Family Name CQ-2093
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CQ2093 CAD Model

Description

The AKM Semiconductor Inc. CQ2093 is a module that belongs to the Sensors, Transducers category. It has a medium popularity and a balanced supply and demand status.

  • Response Time: 1μs
  • Frequency: 400kHz
  • Operating Supply Voltage: 4.5 V ~ 5.5 V
  • Maximum Supply Current: 9mA
  • AC/DC: Yes
  • Sensitivity: 60mV/A
