Same model may have multiple batches, images only for reference.

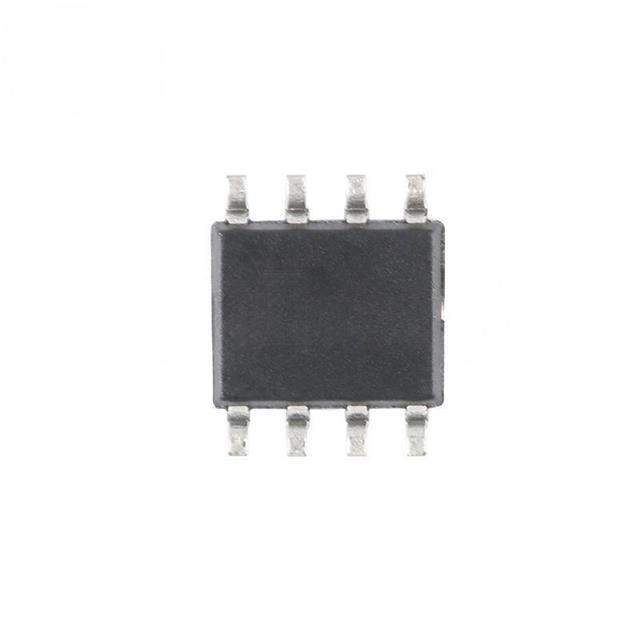

AO4466 Real Image
Same model may have multiple batches, images only for reference.

AO4466

Part No AO4466
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 10A 8-SOIC
Datasheet
AO4466 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 10A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.6V @ 250μA
Max Gate Charge 8.6nC @ 10V
Max Input Capacitance 448pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.1W (Ta)
Maximum Rds On at Id,Vgs 23 mOhm @ 10A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SOIC
Dimension 8-SOIC (0.154", 3.90mm Width)
Win Source Part Number 009753-AO4466
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian AO4466 CAD Model

Description

AO4466 Power MOSFET

The AO4466 MOSFET is designed for high-current and high-voltage applications. It boasts excellent energy efficiency and is well-suited for robust power management solutions.

  • Applications and Projects:
    • Electric vehicles and energy storage systems
    • High-power motor control
    • Renewable energy systems
    • Heavy-duty industrial equipment
  • Features and Benefits:
    • High current handling capability
    • High voltage tolerance
    • Excellent efficiency under load
    • Reliable thermal performance

The AO4466 facilitates the development of sustainable and reliable power solutions.
