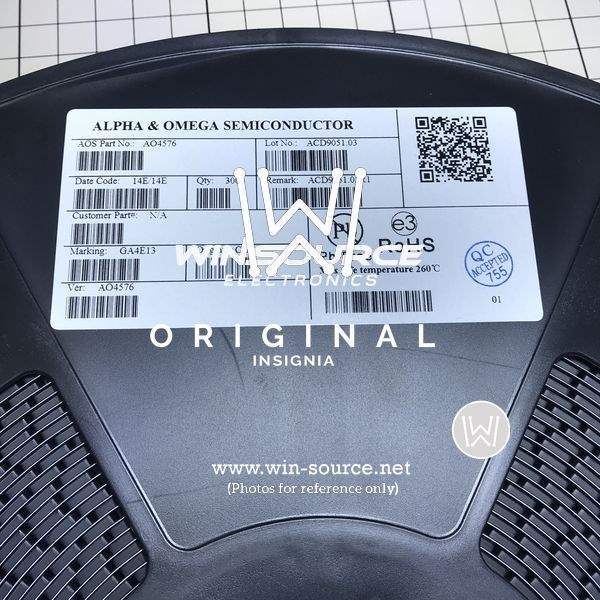

AO4576 Alpha & Omega Semiconductor Inc. AO4576 Real Image AO4576 label picture
Same model may have multiple batches, images only for reference.
AO4576 Alpha & Omega Semiconductor Inc. AO4576 Real Image AO4576 label picture
AO4576 Alpha & Omega Semiconductor Inc. AO4576 Real Image AO4576 label picture
Same model may have multiple batches, images only for reference.

AO4576

Part No AO4576
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description Trans MOSFET N-CH 30V 20A 8-Pin SOIC / MOSFET N-CH 30V 20A 8SOIC
Datasheet
AO4576 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 20A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2.2V @ 250μA
Max Gate Charge 22.5nC @ 10V
Max Input Capacitance 951pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.1W (Ta)
Maximum Rds On at Id,Vgs 5.8 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SOIC
Dimension 8-SOIC (0.154", 3.90mm Width)
Win Source Part Number 1016798-AO4576
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name AO4576
Introduction Date April 19, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AO4576 CAD Model

Description

The AO4576 is an N-channel MOSFET manufactured by Alpha & Omega Semiconductor Inc.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 20A @ 25°C
  • Maximum Rds On @ Id,Vgs: 5.8 mOhm @ 20A, 10V
  • Package: 8-SOIC
  • Mounting: Surface Mount
  • Popularity: Popular
