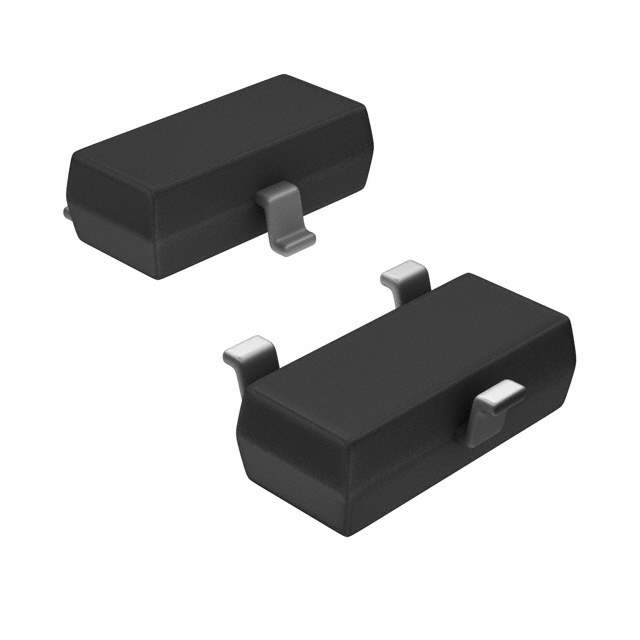

AO7410 Real Image
Same model may have multiple batches, images only for reference.

AO7410

Part No AO7410
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 1.7A SC70-3
Datasheet
AO7410 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 10V
Gate-Source Threshold Voltage 1.5V @ 250μA
Max Gate Charge 12nC @ 10V
Max Input Capacitance 285pF @ 15V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 350mW (Ta)
Maximum Rds On at Id,Vgs 55 mOhm @ 1.7A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-3
Dimension SC-70, SOT-323
Win Source Part Number 078114-AO7410
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AO7410 CAD Model

Description

AO7410 - High-Performance Power MOSFET

The AO7410 power MOSFET is engineered for high-performance applications requiring superior power handling and precision. Its innovative design reduces switching loss and enhances overall circuit performance.

  • Fast switching capability
  • High power density
  • Minimized electromagnetic interference

Applications:

  • Switch-mode power supplies
  • Electric vehicle systems
  • Inductive load control

The AO7410 is suitable for demanding industrial and automotive applications, offering robustness and reliability under harsh conditions.
