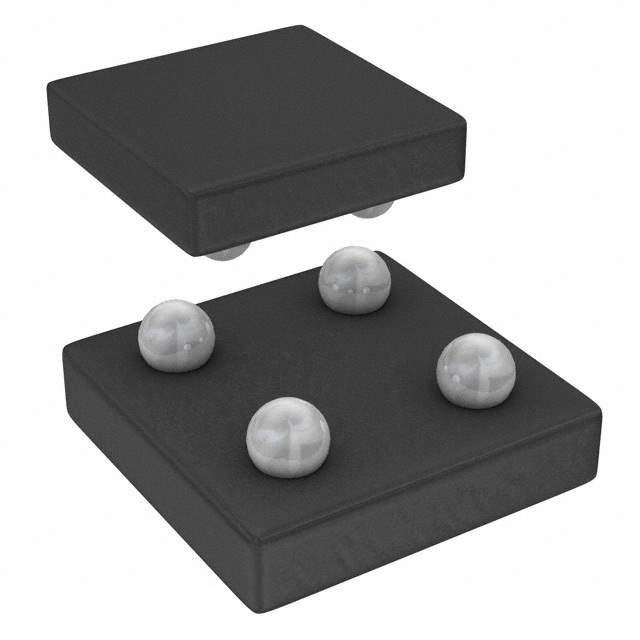

AOC2411 Real Image
Same model may have multiple batches, images only for reference.

AOC2411

Part No AOC2411
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 30V 3.4A 4WLCSP / Trans MOSFET P-CH 30V 3.4A WLCSP T/R
Datasheet
AOC2411 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type P
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 3.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Vgs(th) (Maximum) @ Id 1.4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 20nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 1630pF @ 15V
Vgs (Maximum) ±12V
Power Dissipation (Maximum) 800mW (Ta)
Rds On (Maximum) @ Id, Vgs 45 mOhm @ 1A, 4.5V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 4-WLCSP (1.6x1.6)
Package 4-UFBGA, WLCSP
Win Source Part Number 768545-AOC2411
Popularity Medium
Supply and Demand Status Limited
Family Name AOC2411
Introduction Date December 11, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AOC2411 CAD Model

Description

The Alpha & Omega Semiconductor Inc. MOSFET is a 4-UFBGA, WLCSP packaged device that is suitable for use in discrete semiconductor products.

  • Maximum Power Dissipation: 800mW
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Drain-Source Voltage: 30V
  • Channel Type: P
  • Maximum Gate-Source Voltage: ±12V
  • Maximum Continuous Drain Current: 3.4A @ 25°C (Ta)
  • Input Capacitance: 1630pF @ 15V
  • Gate Charge: 20nC @ 4.5V
  • Maximum Rds On: 45 mOhm @ 1A, 4.5V
  • Status: Obsolete (EOL)
  • Introduction Date: December 11, 2011
  • Estimated EOL Date: Available
  • Halogen-Free: Yes
  • ECCN: EAR99
  • Supply and Demand Status: Limited
