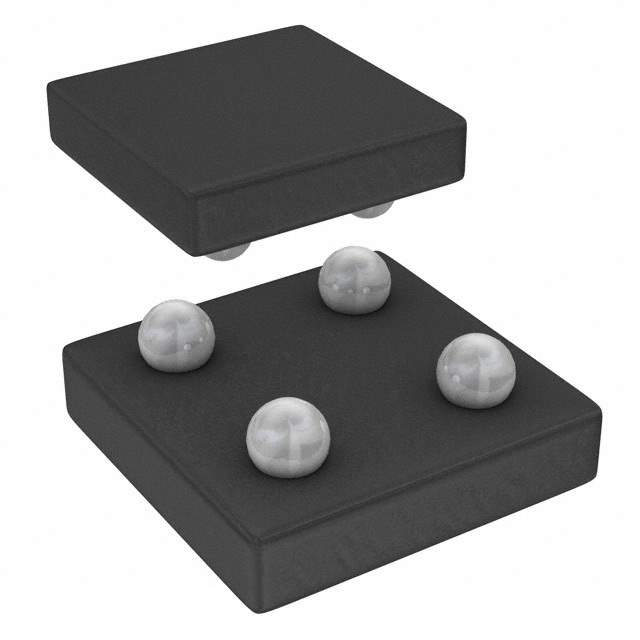

AOC2800 Real Image
Same model may have multiple batches, images only for reference.

AOC2800

Part No AOC2800
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 4WLCSP / Trans MOSFET N-CH 30V 6A 4-Pin WLCSP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
FET Type 2 N-Channel (Dual) Common Drain
FET Feature Logic Level Gate
Gate Charge (Qg) (Maximum) @ Vgs 9.1nC @ 4.5V
Power - Max 1.3W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Package 4-UFBGA, WLCSP
Manufacturer Package 4-WLCSP (1.57x1.57)
Win Source Part Number 768552-AOC2800
Popularity Medium
Supply and Demand Status Limited
Family Name AOC2800
Introduction Date October 19, 2009
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AOC2800 CAD Model

Description

The AOC2800 is a dual N-channel common drain FET type electronic component manufactured by Alpha & Omega Semiconductor Inc.. This component comes in a 4-UFBGA, WLCSP package and has the following specifications:

  • Power-Max: 1.3W
  • Discrete Semiconductor Product: Yes
  • Gate Charge (Qg): 9.1nC @ 4.5V
  • Supply and Demand: Limited
