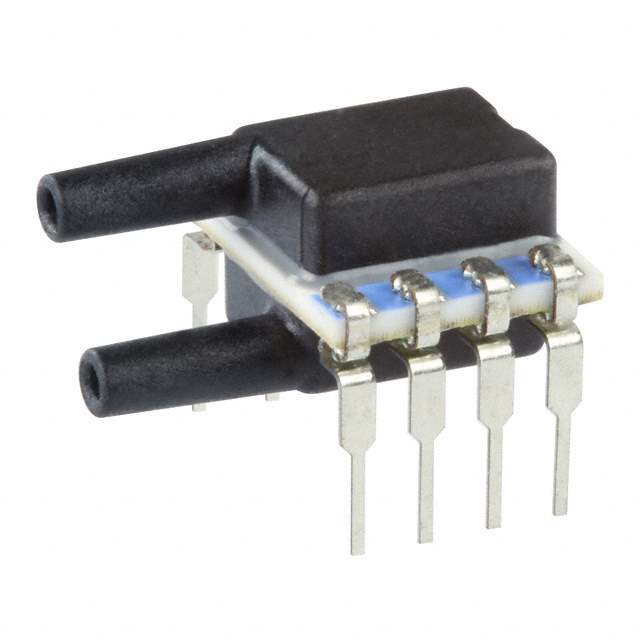

TSCDJJN150PDUCV Real Image
Same model may have multiple batches, images only for reference.

TSCDJJN150PDUCV

Part No TSCDJJN150PDUCV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS / Pressure Sensor -150psi to 150psi Differential 8-Pin DIP Module
Datasheet
TSCDJJN150PDUCV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series TruStability TSC
Pressure Type Differential
Operating Pressure ±150 PSI (±1034.21 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 92.5 mV (5V)
Accuracy ±0.15%
Operating Supply Voltage 1.5 V ~ 12 V
Port Size Male - 0.09" (2.34mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±245 PSI (±1689.22 kPa)
Operating Temperature Range -40°C ~ 85°C
Package 8-DIP (0.524", 13.30mm), Dual Ports, Same Side
Manufacturer Package 8-DIP
Win Source Part Number 798470-TSCDJJN150PDUCV
Popularity Medium
Supply and Demand Status Limited
Family Name TSCDJJN150PDUCV
Country of Origin China
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian TSCDJJN150PDUCV CAD Model

Description

The TruStability TSC 798470-TSCDJJN150PDUCV is a differential pressure sensor that is part of the series.

  • Operating Temperature: -40°C to 85°C
  • Temperature Compensation: Yes
  • Accuracy: ±0.15%
  • Pressure Operating Range: ±150 PSI (±1034.21 kPa)
  • Maximum Pressure: ±245 PSI (±1689.22 kPa)
