AON2701L#A Alpha & Omega Semiconductor Inc.
Same model may have multiple batches, images only for reference.

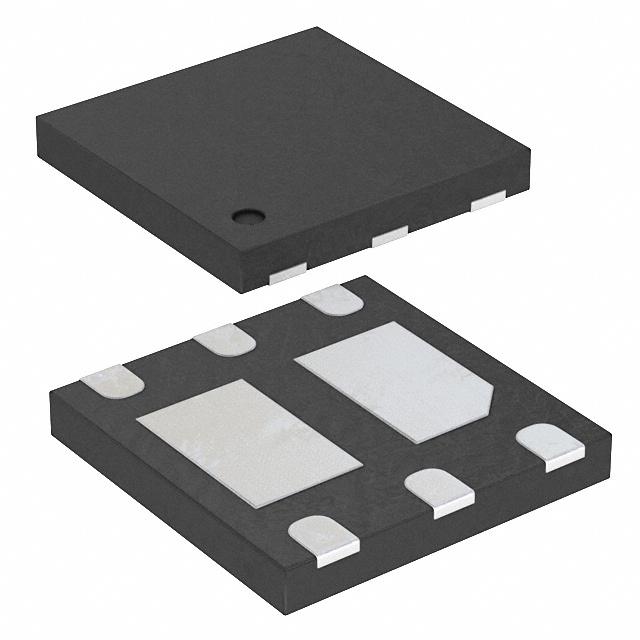

AON2701L#A

Part No AON2701L#A
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 3A 6DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type P
Technology MOSFET
Drain Source Voltage 20V
Current - Continuous Drain (Id) @ 25°C 3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Vgs(th) (Maximum) @ Id 1V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 6.5nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 700pF @ 10V
Vgs (Maximum) ±8V
FET Feature Schottky Diode (Isolated)
Power Dissipation (Maximum) 1.5W (Ta)
Rds On (Maximum) @ Id, Vgs 120 mOhm @ 3A, 4.5V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 6-DFN (2x2)
Package 6-WDFN Exposed Pad
Win Source Part Number 768557-AON2701L#A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON2701L#A CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON2701L#A is a MOSFET technology product with a Schottky diode (isolated) FET feature. It operates at an extended temperature range and comes in a 6-WDFN exposed pad package with the following specifications:

  • Temperature Range: -55°C to 150°C (TJ)
  • Package: 6-WDFN exposed pad
  • Mounting: Surface Mount
  • Family: AON2701L
  • Product Category: Discrete Semiconductor Products
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Status: Obsolete (EOL)
