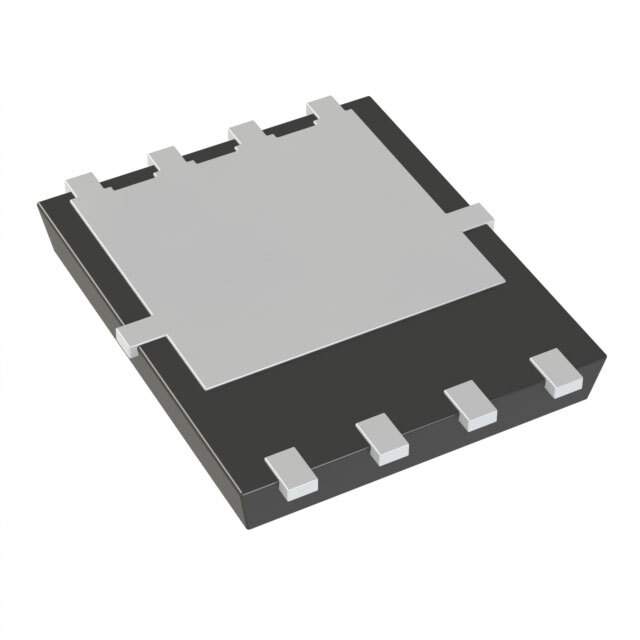

AON6522 Real Image
Same model may have multiple batches, images only for reference.

AON6522

Part No AON6522
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 25V 71A DFN5X6
Datasheet
AON6522 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 25V
Continuous Drain Current at 25°C 71A (Ta), 200A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 2V @ 250μA
Max Gate Charge 145nC @ 10V
Max Input Capacitance 7036pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 7.3W (Ta), 83W (Tc)
Maximum Rds On at Id,Vgs 0.95 mOhm @ 20A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (5x6)
Dimension 8-PowerSMD, Flat Leads
Win Source Part Number 1017070-AON6522
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AON6522 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON6522 is an N-Channel MOSFET.

  • Maximum Current: 71A (Ta), 200A (Tc)
  • Voltage Rating: 25V
  • Maximum Power Dissipation: 7.3W (Ta), 83W (Tc)
  • Package: 8-DFN (5x6)
  • Operating Temperature: -55°C to 150°C (TJ)
  • Rds On @ Id,Vgs: 0.95 mOhm @ 20A, 10V
