Same model may have multiple batches, images only for reference.

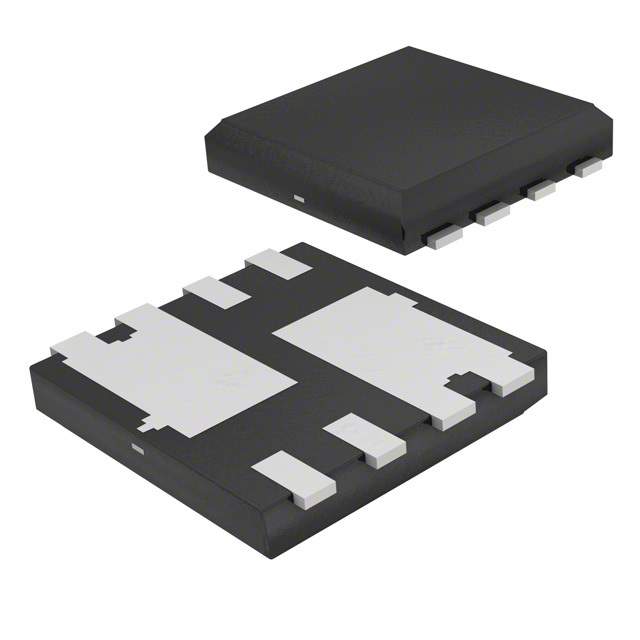

AON7826 Real Image
Same model may have multiple batches, images only for reference.

AON7826

Part No AON7826
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 20V 9A 8DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
FET Type 2 N-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 9A
Maximum Rds On at Id,Vgs 23 mOhm @ 9A, 10V
Gate-Source Threshold Voltage 1.1V @ 250μA
Max Gate Charge 15nC @ 10V
Max Input Capacitance 630pF @ 10V
Maximum Power Dissipation 3.1W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-DFN (3x3)
Win Source Part Number 1017157-AON7826
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AON7826 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AON7826 is a medium-popularity electronic component with balanced supply and demand status.

  • Channel Type: Dual N-Channel
  • FET Feature: Logic Level Gate
  • Package: 8-DFN (3x3)
