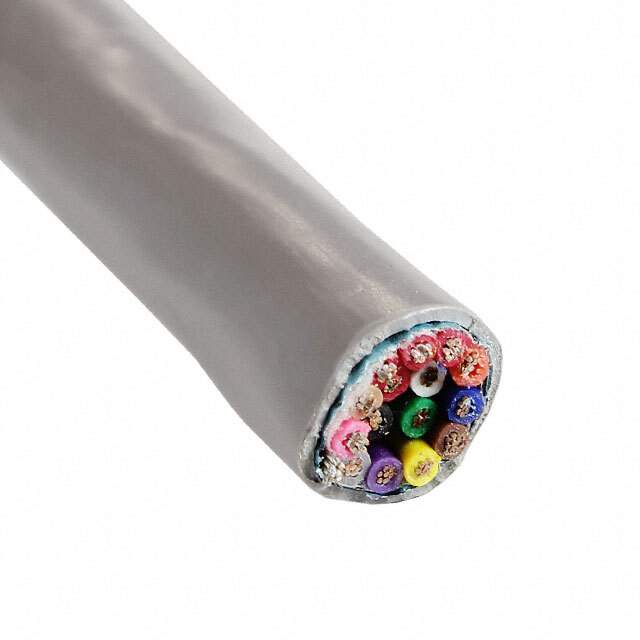

5390/15C SL001 Real Image
Same model may have multiple batches, images only for reference.

5390/15C SL001

Part No 5390/15C SL001
Manufacturer Alpha Wire
Catalog Multiple Conductor Cables
Description CABLE 15COND 16AWG SHLD 1000'  /  15 Conductor Multi-Conductor Cable Slate 18 AWG Foil 1000.0' (304.8m)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Series Xtra-Guard® 1
Package Spool
Cable Type Multi-Conductor
Number of Conductors 15
Wire Gauge 18 AWG
Conductor Strand 16/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.437" (11.10mm)
Shield Type Foil
Length 1000.0' (304.8m)
Jacket Color Slate
Ratings ISO 10993, UL Style 2464
Features Biological Compatibility, Drain Wire, Rip Cord
Voltage 300 V
Temperature Range - Operating -35°C ~ 105°C
Usage Communication, Control
Jacket (Insulation) Thickness 0.0320" (0.813mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Shield Coverage 100%
Base Product Number 5390/15C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 5390/15CSL001,5390/15C SL001-ND
Standard Package 1
Win Source Part Number 1041572-5390/15C SL001
Ultra Librarian 3D Model Ultra Librarian 5390/15C SL001 CAD Model

Description

The Alpha Wire 1041572-5390/15C SL001 is a multi-conductor cable with 15 conductors that are 18 AWG in size.

  • Conductors: 15
  • AWG Size: 18
  • Shielding: Aluminum
  • Shield Coverage: 100%
  • Voltage Rating: 300V
  • Standards: ISO 10993 and UL Style 2464
  • Temperature Range: -35°C ~ 105°C
  • Length: 1000ft
  • Application: Communication and control applications
