Same model may have multiple batches, images only for reference.

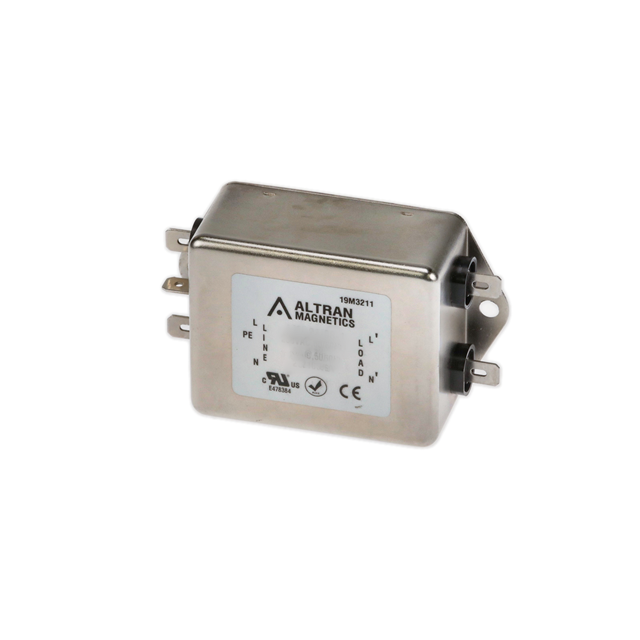

AMI-23-12-1 Real Image
Same model may have multiple batches, images only for reference.

AMI-23-12-1

Part No AMI-23-12-1
Manufacturer Altran Magnetics, LLC
Catalog Power Line Filter Modules
Description LINE FILTER 250VAC 12A CHASS MNT / Single Phase EMC/EMI Line Filter 12 A 250VAC DC ~ 400Hz Single Stage Quick Connect
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Altran Magnetics, LLC
Series AMI-23
Package Box
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 250V
Current 12 A
Frequency - Operating DC ~ 400Hz
Applications General Purpose
Approval Agency CE, cURus
Temperature Range - Operating -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Inductance 4mH
Base Product Number AMI-23
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.30.8000
Other Names 2040-1170-ND,4148-AMI-23-12-1,2040-1170
Standard Package 72
Win Source Part Number 1121780-AMI-23-12-1
Ultra Librarian 3D Model Ultra Librarian AMI-23-12-1 CAD Model

Description

The AMI-23-12-1 is a single-phase power line filter module manufactured by Altran Magnetics, LLC.

  • Inductance: 4mH
  • Current Rating: 12A
  • Voltage Rating: 250V AC
  • Frequency Range: DC to 400Hz
  • Package: Box
  • Termination Style: Quick Connect
  • Application: General-Purpose
