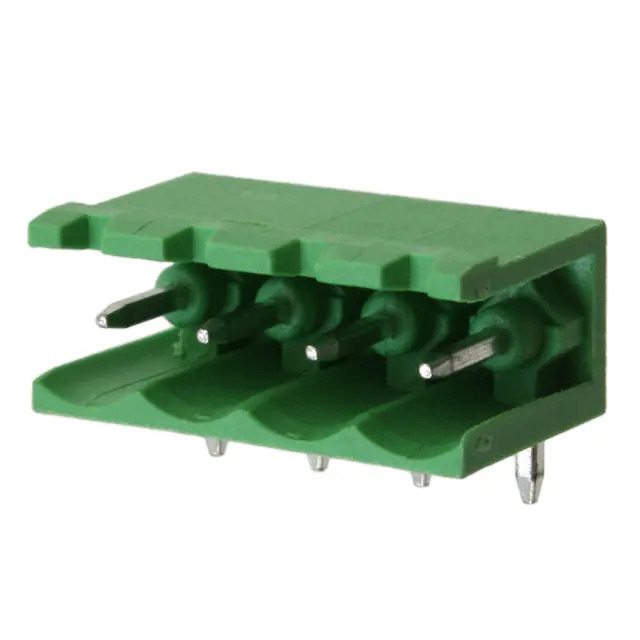

OQ0453510000G Amphenol Anytek
Same model may have multiple batches, images only for reference.

OQ0453510000G

Part No OQ0453510000G
Manufacturer Amphenol Anytek
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS 90DEG 5.08MM / 4 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Datasheet
OQ0453510000G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Amphenol Anytek
Series 06-508
Package Bulk
Product Status Active
Type Header, Male Pins, Shrouded (2 Side)
Number of Positions 4
Positions Per Level 4
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation 90°, Right Angle
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC -
Current - UL 12 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Green
Temperature Range - Operating -40°C ~ 115°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Copper Alloy
Housing Material Thermoplastic Resin
Contact Tail Length 0.138" (3.50mm)
Insulation Height 0.335" (8.51mm)
Base Product Number OQ04
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364668-OQ0453510000G
Ultra Librarian 3D Model Ultra Librarian OQ0453510000G CAD Model

Description

The OQ0453510000G is a header terminal block connector from Amphenol Anytek.

  • Series: 06-508
  • Package Type: Bulk
  • Pitch: 0.200" (5.08mm)
  • Number of Positions: 4
  • Gender: Male Pins
  • Current Rating: 12A
  • Voltage Rating: 300V
  • Mounting Type: Through-Hole
  • Orientation: 90° Right-Angle Header
  • Housing Material: Thermoplastic Resin
  • Termination Style: Solder
