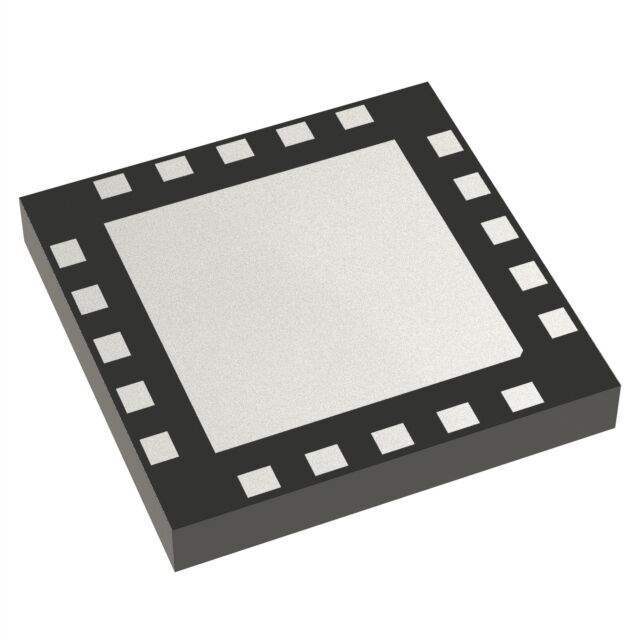

B10G3336N16DLZ

Part No B10G3336N16DLZ
Manufacturer Ampleon USA Inc.
Catalog RF Amplifiers
Description RF Amplifier IC GSM, LTE, WCDMA 3.3GHz ~ 3.6GHz 20-LGA (7x7)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Description

The B10G3336N16DL is a 3-stage 16 W fully integrated Doherty MMIC solution using Ampleon's state of the art LDMOS technology. The carrier and peaking device, input splitter, output combiner, and output matching are integrated in a single package. This multiband device is perfectly suited as a general-purpose device in the frequency range from 3300 MHz to 3600 MHz. Available in LGA outline.
